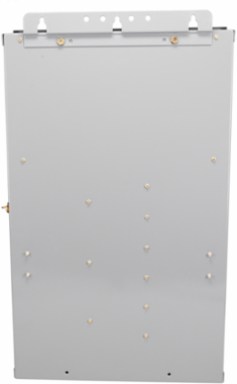

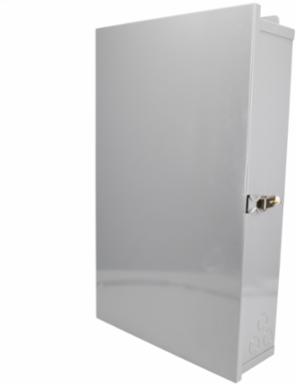

Intermatic ETCB28458PCR Expanded 8-Pole Lighting Contractor Box, 120 - 600 VAC, 60 Hz,2x 4PST, Outdoor Metal Enclosure
- MPN: ETCB28458PCR
- UPC: 078275159198
- PPN: INT-ETCB28458PCR
- UNSPSC: 39122208
CAD
$1174.97
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

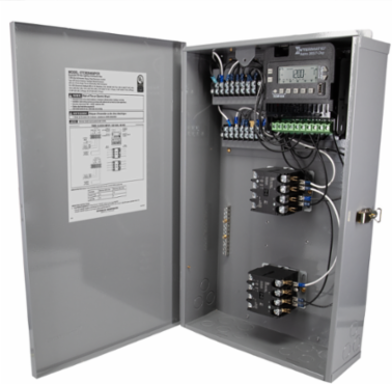

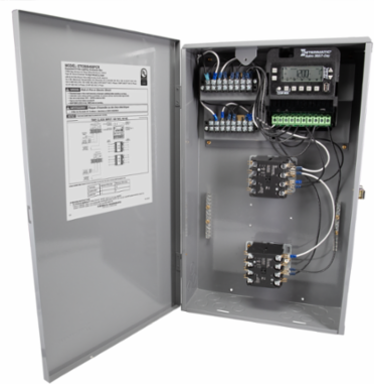

The ETCB28458PCR Expanded 8-Pole lighting Contractor Box provides an easy-to-install solution for a variety of application needs. The Contractor Box comes with a pre-installed Astronomic timer with 7-day, holiday/exception period scheduling, USB for Schedule transfer and Backup, (2) electrically held 40 A contactors, as well as inputs for overrides and surge protective devices.
Features
- 7-Day/365 Day Astronomic Scheduling
- Up to 96 Scheduling set points
- Up to 50 Holiday/Exception Period set points
- USB port for backing up or transferring schedules
- Built-in (2)40 A 4-Pole contactor for more robust loads.
- Input for optional "Timed" photo control override
- Input for other types of switches/sensors
- Terminals for adding Surge Protection
- 100-hour supercapacitor eliminates the need for battery replacement
- Requires 120 VAC 60 Hz for powering the control
Documentation & Downloads
Specifications
Key Specifications
- Input Voltage Rating Range(s)
- 120 VAC, 60 Hz
- Color
- Gray
- Marketing Description
- The ETCB28458PCR Expanded 8-Pole lighting Contractor Box provides an easy-to-install solution for a variety of application needs. The Contractor Box comes with a pre-installed Astronomic timer with 7-day, holiday/exception period scheduling, USB for Schedule transfer and Backup, (2) electrically held 40 A contactors, as well as inputs for overrides and surge protective devices.
- Width
- 12.875 in
- Country of Origin
- Mexico
Warranty Period2-Year limited
ApplicationsIndoor Lighting Control;Machinery & Pump Controls;Outdoor Lighting Control;Timing/Scheduling ON/OFF;Motor Control
Height20.875 in
Depth4.75 in
