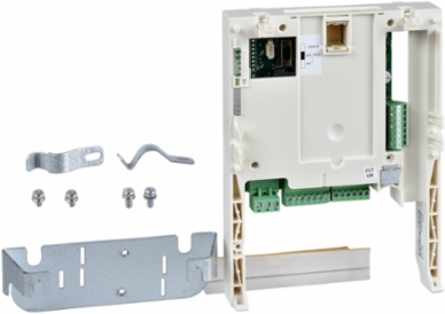

Schneider Electric VW3A3202 Extended I/O Card for Altivar 61/71, 6 Inputs, 4 Outputs, 0.3 kg
- MPN: VW3A3202
- PPN: SCH-VW3A3202
CAD
$306.31
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This extended I/O card enables your drive to meet the needs of more complex or extensive applications. It comprises four logic inputs, two analog inputs, one input for PTC probe and one frequency control input. It also comprises three logic outputs and two analog outputs. It is compatible with Altivar 61 and Altivar 71.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil
Complementary Attributes
- Maximum Switching Current
- configurable relay logic 1.5 A 30 V DC inductive, cos phi = 0.4 7 msconfigurable relay logic 5 A 250 V AC resistive, cos phi = 1, configurable relay logic 5 A 30 V DC resistive, cos phi = 1, configurable relay logic 1.5 A 250 V AC inductive, cos phi = 0.4 7 ms
- Minimum Switching Current
- 3 mA 24 V DC configurable relay logic
Maximum Output Current0.2 A, assignable logic
Important Information Attributes
- Supply
- internal supply for reference potentiometer, 10.5 V DC 10-11 V) , <0.01 A 1-10 kOhm overload and short-circuit protection, internal supply, 24 V DC 21-27 V) , <0.2 A overload and short-circuit protection
- Carbon Footprint Of The End Of Life Phase C1 To C4
- 0.2 kg CO2 eq., 0.207604766
- Carbon Footprint Of The Manufacturing Phase A1 To A3
- 27 kg CO2 eq., 27.3795914894
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- No
- Use Carbon Footprint
- 2482.6
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- No
- Product Kit Identifier
- N
- Electrical Durability
- 100000 cycles configurable relay logic
- Product Or Component Type
- extended I/O card
- Software Version
- EIME v5.9.3
- Total Lifecycle Carbon Footprint
- 2 510 kg CO2 eq.
- Pep Code
- ENVPEP2010015EN
- Pep Verification Date
- 2022-06-01
- Psr Version
- PSR-0005-ed2-EN-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Energy model used: Indonesia
- Energy Model - Use [B6]
- Electricity Mix; AC; < 1kV; EU-27
- Acidification Of Soil And Water (Kg.Equivalent.So2) Operational Energy Use [B6]
- 18.774
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]
- 25574
- Net Use Of Fresh Water (M3) Operational Energy Use [B6]
- 6.4753
- Radioactive Waste Disposed Of (Kg) Operational Energy Use [B6]
- 7.5698
- Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]
- 50295
- Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 46697
- Water Pollution (M3) Operational Energy Use [B6]
- 104170
Carbon Footprint Of The Distribution Phase A40.0500602553, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase A50.0076331983, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B62 483 kg CO2 eq., 2482.6
Local Publishable Date2026-01-12
Stocking FlagN
Device TypeVariable speed drive - VSD option & accessory
TraceabilityNo
Weee ScopeOut
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1929
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Electrical Connectionterminal, 1.5 mm² / AWG 16, 0.25 N.m
Product AvailabilityStock - Normally stocked in distribution facility
ReturnabilityYes
Sustainable PackagingNo
Warranty In Months18
Database Version2020-12
Pcr VersionPCR-ed3-EN-2015 04 02
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionProgram and control the variable speed drive for 10 years.
Functional-unit Unitunit
Energy Consumption On Product Lifetime, In Kwh4204.8
Energy Model - Installation [A5]Electricity Mix; AC; < 1kV; EU-27
Energy Model - End Of Life [C1-c4]Electricity Mix; AC; < 1kV; EU-27
Air Pollution (M3) Operational Energy Use [B6]106470
Global Warming (Kg.Equivalent.Co2) Operational Energy Use [B6]2482.6
Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]9286.2
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]46697
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]3598.8
Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]3598.8
Environment Attributes Main
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 2510.2448897089
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP2010015EN
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Type Of Verification For The Pep
- Independent internal review
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP2010015EN
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2022-06-01
Psr VersionPSR-0005-ed2-EN-2016 03 29
General Attributes
- Product Or Component Type
- extended I/O card
ETIM
- ETIM 8
- EC002025
ETIM 9EC002025
Output Attributes
- Analogue Output Type
- AO3 software-configurable voltage +/- 10 V DC 470 Ohm 4-6 ms 10 bitsAO2 software-configurable current 0...20 mA 500 Ohm 4-6 ms 10 bits, AO2 software-configurable voltage +/- 10 V DC 470 Ohm 4-6 ms 10 bits, AO3 software-configurable current 0...20 mA 500 Ohm 4-6 ms 10 bits
- Discrete Output Type
- LO3, LO4) assignable logic 4-6 ms level 1 PLC, R4A, R4B, R4C) configurable relay logic
- Discrete Output Number
- 5
- Maximum Output Current
- 0.2 A, assignable logic
Discrete Output LogicLO3, LO4) negative, LO3, LO4) positive
Analogue Output Number2
Discrete Output Voltage24 V DC <= 30 V) assignable logic
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Input Attributes
- Analogue Input Type
- AI3-/Al3+ differential current programmable 0...20 mA 250 Ohm 4-6 ms 11 bits + sign, AI4 software-configurable current 0...20 mA 250 Ohm 4-6 ms 11 bits, AI4 software-configurable voltage 0...10 V DC, 24 V max 30000 Ohm 4-6 ms 11 bits
- Discrete Input Type
- RP) frequency control 4-6 ms, LI11...LI14) programmable level 1 PLC 3.5 kOhm 4-6 ms
- Analogue Input Number
- 2
- Discrete Input Number
- 6
Discrete Input Logicnegative LI11...LI14), >= 16 V, <= 10 V, positive LI11...LI14), <= 5 V, >= 11 V, positive RP), < 1.2 V, >= 3.5 V
Ptc Probe InputTH2+, TH2- trip resistance 3 kOhm, TH2+, TH2- reset resistance 1.8 Ohm, TH2+, TH2- short circuit protection < 0.05 Ohm, TH2+, TH2- for 6 PTC probe <= 1.5 Ohm
Discrete Input Frequency0...30 kHz frequency control
Discrete Input Voltage24 V DC <= 30 V)programmable
