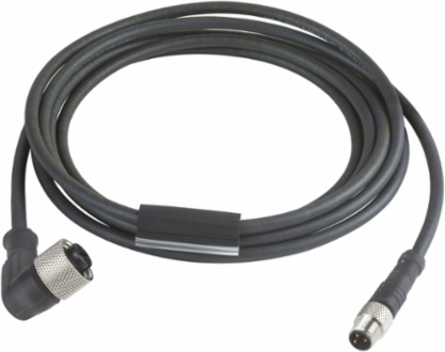

Telemecanique Sensors XZCR2712037T1 Jumper cable XZ, male straight M8 3 pin, female elbowed M12 5 pin, PUR 1 m
- MPN: XZCR2712037T1
- PPN: TES-XZCR2712037T1
- UNSPSC: 39121528
CAD
$38.05
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Jumper cable XZ, male straight M8 3 pin, female elbowed M12 5 pin, PUR 1 m
Documentation & Downloads
Specifications
Key Specifications
| Accessory / Separate Part Category | cabling accessory |
|---|
| Accessory / Separate Part Type | jumper cable |
|---|
Complementary
| Collar Material | metal |
|---|---|
| Cable Outer Diameter | 5.2 mm |
| [Ue] Rated Operational Voltage | 45 V DC || 60 V AC |
| Insulation Resistance | >= 1000 MOhm |
| Line Rated Current | 4 A |
| Jumper Cable End 1 | M8 male 3 pins straight screw-on and clip-on |
| Jumper Cable End 2 | M12 female 5 pins elbowed screw-on |
|---|---|
| Wire Insulation Material | PUR |
| Maximum Resistance Across Terminals | 5000 mOhm |
| Cable Length | 1 m |
| Cable Composition | 3 x 0.34 mm² |
| Net Weight | 0.065 kg |
Environment
| Product Certifications | cULus |
|---|---|
| Ambient Air Temperature For Storage | -35-100 °C |
| Ambient Air Temperature For Operation | -35-90 °C static || -5-90 °C flexing |
|---|---|
| Ip Degree Of Protection | IP65 || IP67 || IP69K |
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| Circularity Profile | ENVEOLI1308015EN |
|---|---|
| Mercury Free | Yes |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Rohs Exemption Information | Yes |
|---|---|
| Environmental Disclosure | ENVPEP1308015 |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
