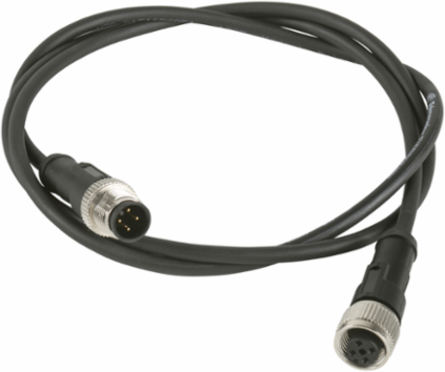

Telemecanique Sensors XZCR1512040A1 Jumper cable XZ, male straight M12 3 pin, female elbowed M12 3 pin, PUR 1 m
- MPN: XZCR1512040A1
- PPN: TES-XZCR1512040A1
- UNSPSC: 39121528
CAD
$30.82
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Jumper cable XZ, male straight M12 3 pin, female elbowed M12 3 pin, PUR 1 m
Documentation & Downloads
Specifications
Key Specifications
- Accessory / Separate Part Category
- cabling accessory
Accessory / Separate Part Typejumper cable
Complementary
- Jumper Cable End 2
- M12 female 3 pins elbowed screw-on
- Wire Insulation Material
- PUR
- Maximum Resistance Across Terminals
- 5000 mOhm
- Cable Length
- 1 m
- Cable Composition
- 3 x 0.34 mm²
- Net Weight
- 0.065 kg
Cable Outer Diameter5.2 mm
[Ue] Rated Operational Voltage250 V AC || 300 V DC
Insulation Resistance>= 1000 MOhm
[In] Rated Current4 A
Jumper Cable End 1M12 male 3 pins straight screw-on
Environment
- Product Certifications
- cULus
- Ambient Air Temperature For Storage
- -35-100 °C
Ambient Air Temperature For Operation-35-90 °C static || -5-90 °C flexing
Ip Degree Of ProtectionIP69K || IP65 || IP67
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Circularity Profile
- ENVEOLI1308015EN
- Mercury Free
- Yes
- Sustainable Offer Status
- Green Premium product
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Rohs Exemption InformationYes
Environmental DisclosureENVPEP1308015
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
