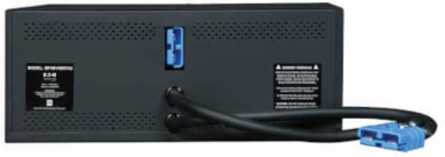

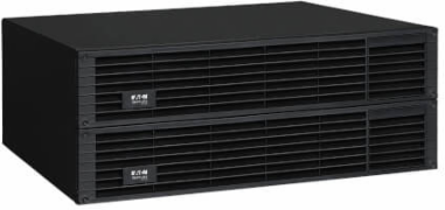

Tripp Lite BP48V48RT4U External 48V 4U Rackmount Battery Pack, 143.3 lbs, Daisychain Support
- MPN: BP48V48RT4U
- UPC: 037332142474
- PPN: TRP-BP48V48RT4U
CAD
$3659.54
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
External 48V 4U Battery Pack for select UPS Systems (BP48V48RT4U), TAA
Features
- External battery pack with attached DC cabling

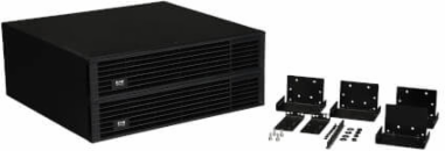

- 2-post compatible mounting hardware
Documentation & Downloads
Specifications
Additional
| Voltage | 48 VDC |
|---|---|
| Input Phase | Single-Phase |
| Typical Battery Lifespan | 4-6 years (North America) |
| Shipping Weight | 170 lbs |
| Shipping Dimensions | 13.5 x 22.5 x 23.5 in |
| Installation Form Factors Supported with Included Accessories | 2 post 19 inch rackmount |
| Material of Construction | Black steel cabinet |
| Product Warranty Period (U.S. & Canada) | 2-year limited warranty |
| Output Overload Protection | 180A DC output fuse system |
|---|---|
| Expandable Runtime | Yes, daisy-chain multiple battery packs |
| Unit Weight | 143.3 lbs |
| Unit Dimensions | 7 x 17.3 x 16.75 in |
| Minimum Required Rack Depth | 23.75 in |
| Installation Form Factors Supported with Optional Accessories | 4 post rackmount full-depth (4POSTRAILKIT) |
| UPS Connection | Attached 20.5 inch, 4 gauge cable with UPS-specific DC connector |
