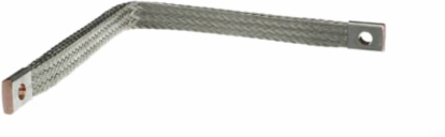

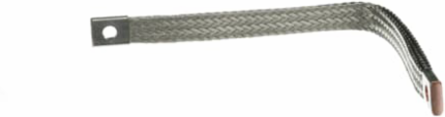

Blackburn FB3XD24-1 Flexible Braid Connector 316.8 KCMIL, 24 Inch Long, Tin-Plated Copper
- MPN: FB3XD24-1
- UPC: 783786434268
- PPN: T-B-FB3XD24-1
- UNSPSC: 39121465
CAD
$381.72
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Tin Plated Copper, Flexible Braid Connector, 1 Hole Pad - 0.563 inch diameter, 24.00 inches long x 1.25 inch wide x .3 inch thick. FB3XD-1 Series Standard. Pad 1.25 inch wide x 1.5 inch long. 3 Braids in Assembly 1 Across x 3 Layers Thick. 316800 circular mils.
Specifications
Additional Information
| Application | Flexible Copper Braids for use in Substation and Grounding Applications |
|---|---|
| Cable Length | 24 in |
| Conductor Shape | Flat |
| Material of Conductor | Tin-Plated Copper |
| Product Type | Flexible Braid Connector - 1-Hole |
| Standards | UL E3060, CSA LR29625 |
| Brand / Label | Boreal |
|---|---|
| Conductor Category | Flexible |
| Effective Date | 20040709 |
| Product Name | FLEXIBLE BRAID COPPER CONNECTOR |
| Special Functions | Tin-Plated Copper Braids and Ferrules for High Conductivity and Corrosion Resistance. Enables Linear Expansion, Equipment Vibration and Offset Connections. |
Ordering
| Country of Origin | United States (US) |
|---|
| Selling Unit of Measure | each |
|---|
Classifications
| WEEE Category | Product Not in WEEE Scope |
|---|
| IDEA Granular Category Code (IGCC) | 4695 >> Flexible braid |
|---|
