Schneider Electric NSYSMPFB Intermediate fixing support of the mounting plate in back position, PanelSeT SFN, PanelSeT SF and SM, steel
Schneider Electric NSYSMPFB Intermediate fixing support of the mounting plate in back position, PanelSeT SFN, PanelSeT SF and SM, steel
- MPN: NSYSMPFB
- PPN: SCH-NSYSMPFB
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$10.28/ EA
Description

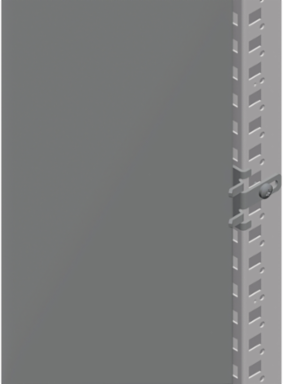

This is and intermediate fixing of the mounting plate, located in the back of the enclosure. The product is suitable for PanelSeT SFN, PanelSeT SF/SFX and PanelSeT SM electrical enclosures. It brings an aditional support when fixing of the mounting plate, at any height of the plate when the plate is mounted in the back of the enclosure. The supports minimize the vibration of the plate during the transport and operation of the panel. The product is made of zinc-coated steel. For PanelSeT SFN and PanelSeT SF/SFX the supports are fixed to the structure when the plate is already located in the back of the enclosure. In case of PanelSeT SM, the supports are fixed on light cross-rails or on 40 mm (one row) universal or on quick-fixing cross-rails. The cross rails are not supplied. The set contains ten units and fixing elements. To be ordered by multiples of 10.
Specifications
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- 1 support, fixing elements
- Carbon Footprint Of The Distribution Phase A4
- 0.011549897, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase A5
- 0.01330404, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase B2 B3 B4 B6
- 0 kg CO2 eq., 0
- Local Publishable Date
- 2025-12-11
- Stocking Flag
- N
- Weee Scope
- Out
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1916
- China Rohs In Scope
- No
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Adjustment
- at any height of the mounting plate
- Energy Efficiency Optimized
- False
- Material
- steel
- Product Availability
- Stock - Normally stocked in distribution facility
- Product Or Component Type
- intermediate support
- Range
- PanelSeT
- Software Version
- v5.9.4
- Sustainable Packaging
- No
- Accessory Separate Part Category
- mounting accessory
- Pep Code
- ENVPEP1109023EN
- Pep Verification Date
- 2023-03-30
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 20
- Recyclability Potential, In %
- 98
- Pn
- 1
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Enclosure Nominal Dimensions-, -
Carbon Footprint Of The End Of Life Phase C1 To C40.1 kg CO2 eq., 0.141050856
Carbon Footprint Of The Manufacturing Phase A1 To A30.3 kg CO2 eq., 0.260707108
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Scope PerimeterAt least in Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Device Applicationmulti-purpose
Fixing Modeby fixing element
Mounting Locationon back side of enclosure
Product Destinationfor mounting plate
Quantity Per Setset of 10
ReturnabilityYes
Surface Finishzinc coated
Total Lifecycle Carbon Footprint0.4 kg CO2 eq.
Warranty In Months18
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionProtect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure with dimensions H2000mm x W800mm x D600mm, while protecting against mechanical impacts (IK10-IEC 62262) and the penetration of solid objects and liquids (IP55-IEC 60529) as per the standard IEC 62208.
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; FR
Offer Owner Code190789
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 0.426611901
- Eu Rohs Directive
- Compliant
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2023-03-30
- Psr Version
- PSR-0005-ed2-2016 03 29
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP1109023EN
Packaging Made With Recycled CardboardNo
Reach Free Of SvhcYes
Pep CodeENVPEP1109023EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- intermediate support
ETIM
- ETIM 8
- EC002620
ETIM 9EC002620
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Country of Origin
- Spain
