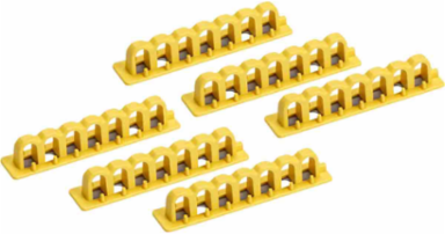

Brady 65814 EZ Paneloc™ Lock Rail 4 Inch with 7 Loops, 6 Pack - Fiberglass Reinforced Nylon
- MPN: 65814
- UPC: 754473658144
- PPN: BRD-65814
- UNSPSC: 39121901
CAD
$53.99
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

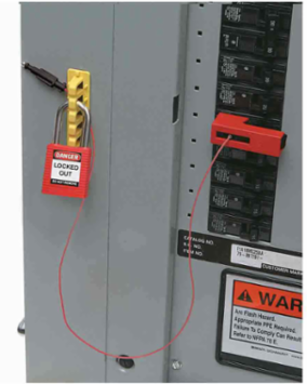

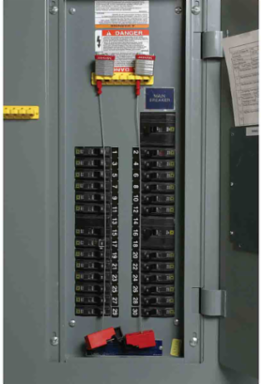

This lock rail is part of the EZ Paneloc™ lock rail system, which allows workers to secure EZ Paneloc™ circuit breaker lockouts by passing a plastic key through the lock rail.
Features
- EZ Paneloc™ lock rail system works on a wide range of breakers, including single- and multi-pole configurations

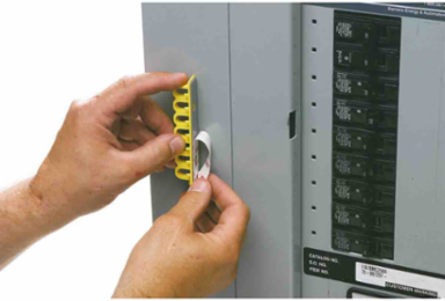

- Lock rail works with most padlocks and permanently affixes to any location on the panel
- Padlocks and EZ Paneloc™ Snap-On and Clamp-On breaker lockout devices sold separately
- EZ Paneloc™ lock rail system allows panel door to be closed when lockouts are in place and fits multiple locks, eliminating the need for group hasps
Documentation & Downloads
Specifications
Key Specifications
- Accessory Type
- Lock Rail
- Color
- Yellow
- Maximum Number of Padlocks
- 7
- Risk Type
- Electrical Risk
- Trade Name
- EZ Paneloc™
- Brady Material Number
- LOTO-44
- SAP B-Number
- LOTO-44
- Dimensions (Metric)
- 20.32 mm W x 101.60 mm H x 17.78 mm D
- Maximum Service Temperature °C
- 120 °C
- Minimum Service Temperature °C
- -20 °C
- Rail Depth (mm/cm/m)
- 17.78 mm
- Rail Length (mm/cm/m)
- 101.6 mm
- Rail Size (mm/cm/m)
- 20.32 mm W x 101.6 mm L x 17.78 mm D
- Rail Width (mm/cm/m)
- 20.32 mm
- Size - Width (mm)
- 20.32 mm
Brand NameBrady®
For Use WithCircuit Breakers
Primary Noun, Basic FunctionLockout Device
Total Qty per Pack6 Piece(s) / Pack
Adhesive (Y/N)Yes
MaterialFiberglass Reinforced Nylon
Depth (mm/cm/m)17.78 mm
Height (mm/cm/m)101.60 mm
Maximum Shackle Diameter (in/ft/yd)0.31 in
Rail Depth (in/ft/yd)0.7 in
Rail Length (in/ft/yd)4 in
Rail Size (in/ft/yd)0.8 in W x 4 in L x 0.7 in D
Rail Width (in/ft/yd)0.8 in
Size - W x H x D (mm)20.32 x 101.60 x 17.78
Voltage480/600 V
Regulatory Information
- Contains CA PROP 65 Substance
- No - Does not contain
- Contains Heavy Metal(s)
- No - Does not contain
- EU RoHS Compliance
- Not Applicable
- Contains 3TG Mineral
- No-Does Not Contain
Contains CA PROP 65 SubstanceNo
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantNo
SDS Safety Data Sheet requiredNo = MSDS/SDS is not required
