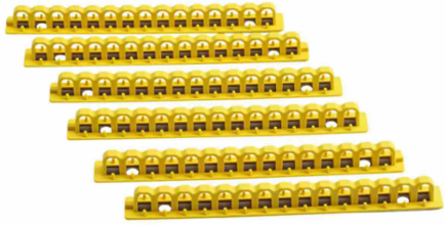

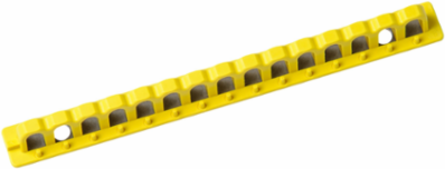

Brady 51260 EZ PanelocTM Lock Rail 8 Inch with 15 Loops, Fiberglass Reinforced Nylon, Pack of 6
- MPN: 51260
- UPC: 754473512606
- PPN: BRD-51260
- UNSPSC: 39121901
CAD
$81.99
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

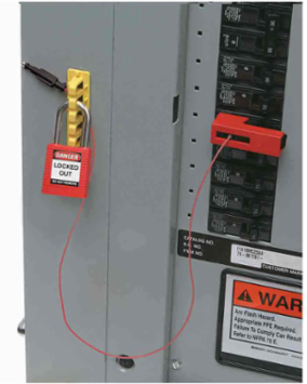

This lock rail is part of the EZ Paneloc™ lock rail system, which allows workers to secure EZ Paneloc™ circuit breaker lockouts by passing a plastic key through the lock rail.
Features
- EZ Paneloc™ lock rail system works on a wide range of breakers, including single- and multi-pole configurations
- Lock rail works with most padlocks and permanently affixes to any location on the panel
- Padlocks and EZ Paneloc™ Snap-On and Clamp-On breaker lockout devices sold separately
- EZ Paneloc™ lock rail system allows panel door to be closed when lockouts are in place and fits multiple locks, eliminating the need for group hasps
Documentation & Downloads
Specifications
Key Specifications
| Accessory Type | Lock Rail |
|---|---|
| Color | Yellow |
| Maximum Number of Padlocks | 15 |
| Risk Type | Electrical Risk |
| Trade Name | EZ Paneloc™ |
| Brady Material Number | LOTO-44 |
| SAP B-Number | LOTO-44 |
| Dimensions (Metric) | 20.32 mm W x 203.20 mm H x 17.78 mm D |
| Maximum Service Temperature °C | 120 °C |
| Minimum Service Temperature °C | -20 °C |
| Rail Depth (mm/cm/m) | 17.78 mm |
| Rail Length (mm/cm/m) | 203.2 mm |
| Rail Size (mm/cm/m) | 20.32 mm W x 203.2 mm L x 17.78 mm D |
| Rail Width (mm/cm/m) | 20.32 mm |
| Size - Width (mm) | 20.32 mm |
| Brand Name | Brady® |
|---|---|
| For Use With | Circuit Breakers |
| Primary Noun, Basic Function | Lockout Device |
| Total Qty per Pack | 6 Piece(s) / Pack |
| Adhesive (Y/N) | Yes |
| Material | Fiberglass Reinforced Nylon |
| Depth (mm/cm/m) | 17.78 mm |
| Height (mm/cm/m) | 203.20 mm |
| Maximum Shackle Diameter (in/ft/yd) | 0.31 in |
| Rail Depth (in/ft/yd) | 0.7 in |
| Rail Length (in/ft/yd) | 8 in |
| Rail Size (in/ft/yd) | 0.8 in W x 8 in L x 0.7 in D |
| Rail Width (in/ft/yd) | 0.8 in |
| Size - W x H x D (mm) | 20.32 x 203.20 x 17.78 |
| Voltage | 480/600 V |
Regulatory Information
| Contains CA PROP 65 Substance | No - Does not contain |
|---|---|
| Contains Heavy Metal(s) | No - Does not contain |
| EU RoHS Compliance | Not Applicable |
| Contains 3TG Mineral | No-Does Not Contain |
| Contains CA PROP 65 Substance | No |
|---|---|
| DOT Regulated Product | No = not regulated by DOT |
| EU RoHS Compliant | No |
| SDS Safety Data Sheet required | No = MSDS/SDS is not required |
