Leviton

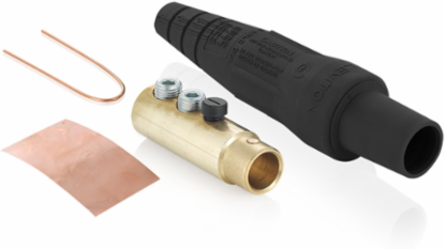

Leviton 16D33-UE Female Plug 2/0-4/0 AWG Double Set Screw 400 Amp Type 3R Black

  • MPN: 16D33-UE
  • UPC: 078477715895
  • PPN: LEV-16D33-UE

CAD

$74.70

/ EA

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

16 Series Taper Nose Cam-Type Female Plug, Contact & Insulator, Detachable, 2/0 - 4/0 AWG, Double Set Screw Termination, 400 Amp Max, 600VAC/DC, Type 3R When Mated, Black

Features

  • Leviton’s Rhino-Hide Single Pole Cam-Type Connectors supply temporary electrical power for both indoor and outdoor applications. These devices are designed for easy assembly and disassembly, without special tools.
  • Single or double set screw or crimp tube termination
  • NEMA 3R rated for outdoor use when mated
  • Designed with cylindrical profile to reduce snap
  • UL: 1691, 508 – 35k A / 600V Short Circuit Current Rating
  • Color-coding provides fast and easy phase identification
  • Common applications: entertainment, oil and gas, mining operations, power distribution, construction sites, and other temporary power applications

Documentation & Downloads

Specifications

Key Specifications

Country of OriginMexico
RoHS CompliantTrue

Standards and Certifications

CSA Standard1691
UL1691, 508 – 35k A / 600V Short Circuit Current Rating
NEMA RatingType 3R

Material Specifications

ContactsBrass
Strain ReliefCopper Wire

Mechanical Specifications

Cable Range2/0 – 4/0 AWG
GenderFemale
Connection TypeDouble Set Screw

Product Features

ColorBlack

Electrical Specifications

Max. Amperage400 Amp
Max. Voltage600 Volt
Female Plug 2/0-4/0 AWG Double Set Screw 400 Amp Type 3R Black
