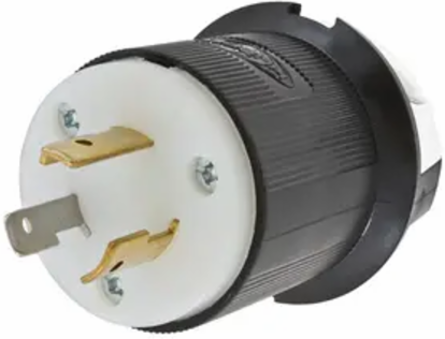

Hubbell Wiring Device-Kellems HBL2311 Twist-Lock Male Plug, 20A 125V, 2-Pole 3-Wire, Screw Terminal, Nylon
Hubbell Wiring Device-Kellems HBL2311 Twist-Lock Male Plug, 20A 125V, 2-Pole 3-Wire, Screw Terminal, Nylon
- MPN: HBL2311
- UPC: 783585037707
- PPN: HBL-HBL2311
- UNSPSC: 39121402
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$27.98/ EA
Description
Locking Devices, Twist-Lock®, Industrial, Male Insulgrip® Plug, 20A 125V AC, 2-Pole 3-Wire Grounding, NEMA L5-20P, Screw Terminal, Black and White Nylon.
Features
- Ribbed nylon housing provides a secure grip and impact and chemical resistance.
- Superior cord grip design protects terminations from excess strain.
- Clear, funnel shaped wire entry for ease of termination.
- Integral dust shield protects wiring chamber from dust or contaminants.
- Standard Product
Specifications
Specifications
- Engineering Drawing 1 Display Text
- HBL2311 AutoCAD Drawing
- General Literature Asset 2 Display Text
- Education Application Guide
- Country of Origin
- United States
- Dimensions
- 2.26 in x 2.26 in x 2.75 in
- Horsepower - Maximum
- 1
- Length
- 2.26 in
- Standards - RoHS Compliance Status
- CM
- Application
- Extra Heavy Duty Industrial
- Cord Type
- All Listed Portables
- NEMA Rating
- L5-20P
- Number of Wires
- 3-Wire
- Size
- 2.26 in x 2.26 in x 2.75 in
- Standard
- Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498
- Voltage Rating
- 125 VAC
- Voltage Rating Description
- 125 VAC
- Width
- 2.26 in
- Dielectric Strength
- Withstands 2,000V minimum
- Nema Rating
- L5-20P
- Number Of Wires
- 3-Wire
- Class Code
- A08
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- 2311
- Cable Range
- 0.360 - 0.930 in
- Material - Mounting Hardware
- Cord Mounted
- Current Rating
- 20 A
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 9.350 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 30 EA
- Each - Pack Description
- Each
- Pallet - GTIN - Package
- 70783585037706
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
General Literature Asset 1 Display TextIndustrial Solutions
General Literature Asset 3 Display TextHealthcare Application Guide
Current / Amperage Rating20 A
Height2.75 in
Industry Standard(s)Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498
PerformanceElectrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - HB or better per UL94 or CSA 22.2 No. 0.6;Environmental - Moisture Resistance - IP20 Suitability;Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact);Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only.;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Amperage Rating20 A
ColorNoir, blanc
Environmental ConditionsIndoor Dry Unless Protected By Additional Means
Number of Poles2-Pole
PhaseSingle Phase
Special FeaturesStandard Product
TypePlugs
Wire Size#16 AWG to #8 AWG
Weight0.25 lb.
ConnectivityPressure Terminal Screws
Display SizeStandard Sized
Number Of Poles2-Pole
Operating TemperatureMaximum continuous 75°C and minimum -40°C without Impact
Description - InvoiceLKG PLUG, 20A 125V, L5-20P, B/W
Harmonization Code8536699902
MSDS FlagNo
Sub Class CodeA08A110
Cord Range0.360"-0.930" (9-24)
Cord Diameter0.360-0.930 in
MaterialNylon
BOX SIZE8.000x12.700x8.900 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack783585037707
Case Weight9.450 lb.
Lowest Level UOMEach
Pallet Height47.400 in
Pallet Weight969.000 lb.
Certifications
- EU RoHS Indicator
- Yes
