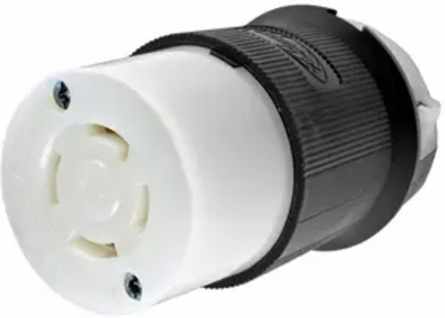

Hubbell Wiring Device-Kellems HBL2723 Twist-Lock Connector Body, 30A, 3-Phase, 250V AC, Screw Terminal, Nylon
Hubbell Wiring Device-Kellems HBL2723 Twist-Lock Connector Body, 30A, 3-Phase, 250V AC, Screw Terminal, Nylon
- MPN: HBL2723
- UPC: 783585039251
- PPN: HBL-HBL2723
- UNSPSC: 39121421
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$128.20/ EA
Description
Locking Devices, Twist-Lock®, Industrial, Female Connector Body, 30A 3-Phase Delta 250V AC, 3-Pole 4-Wire Grounding, L15-30R, Screw Terminal, Black and White.
Features
- Superior cord grip design protects terminations from excess strain.
- Clear, funnel shaped wire entry for ease of termination.
- Integral dust shield protects wiring chamber from dust or contaminants.
- Standard Product
Specifications
Specifications
- Buy American Compliant
- Yes
- Current / Amperage Rating
- 30 A
- Each - Width
- 2.500 in
- Industry Standard(s)
- Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498
- Performance
- Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - HB or better per UL94 or CSA 22.2 No. 0.6;Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact);Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only.;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
- Application
- Heavy Duty Industrial
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- NEMA Rating
- L15-30R
- Size
- 2.33 in x 2.33 in x 3.86 in
- Standard
- Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498
- Voltage Rating
- 3 Phase 250 VAC
- Weight
- 0.40 lb.
- Connectivity
- Pressure Terminal Screws
- Display Size
- Standard
- Number Of Poles
- 3-Pole
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Wire Size
- #16 AWG to #8 AWG
- Description - Invoice
- LKG CONN, 30A 3P 250V, L15-30R, B/W
- Harmonization Code
- 8536690200
- MSDS Flag
- No
- Sub Class Code
- A08A110
- Cord Range
- 0.350"-1.150" (9-29)
- Cord Diameter
- 0.350-1.150 in
- Material
- Nylon
- BOX SIZE
- 8.000x12.700x9.000 (in)
- Carton - Number of Sub Packs
- 30
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585039251
- Case Weight
- 13.350 lb.
- Lowest Level UOM
- Each
- Pallet Height
- 47.400 in
- Pallet Weight
- 1331.100 lb.
Country of OriginUS
Dimensions2.33 in x 2.33 in x 3.86 in
Height3.86 in
Length2.33 in
Amperage Rating30 A
ColorNoir, blanc
InsulationInsulated Body
Number of Poles3-Pole
Special FeaturesStandard Product
TypeConnector Body
Voltage Rating Description3 Phase 250 VAC
Width2.33 in
Dielectric StrengthWithstands 2,000V minimum
Nema RatingL15-30R
Number Of Wires4-Wire
PhaseThree Phase
Class CodeA08
Freight Class Code06168002
Image Actual Or RepresentativeA
Replaced Catalog NumberHBL2723CN
Cable Range0.350 - 1.150 in
Material - Mounting HardwareCord Mounted
Current Rating30 A
Base Unit of MeasureEA
Carton - Gross Weight per Pack12.950 lb.
Carton - Pack DescriptionCarton
Carton - Total Units30 EA
Each - Pack DescriptionEach
Pallet - GTIN - Package70783585039250
Pallet Length48.000 in
Pallet Width40.000 in
Certifications
- EU RoHS Indicator
- Yes
