Weidmuller 1200000000 HDC HE 6 MS
- MPN: 1200000000
- PPN: WDM-1200000000
CAD
$11.82
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

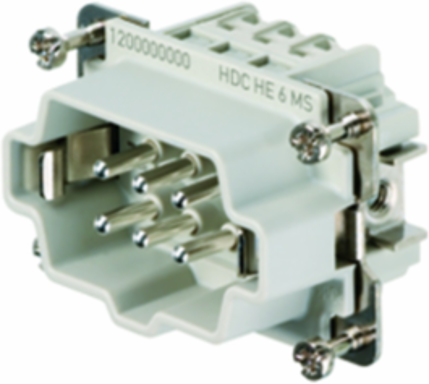

HDC insert, Pin, 500 V, 24 A, Number of poles: 6, Screw connection, Size: 3
Documentation & Downloads
Specifications
Additional
- Rated Current
- 24 A
- Rated Impulse Voltage
- 6 kV
- Pollution Severity
- 3
- Wire Connection Cross Section AWG
- AWG 20 to AWG 14
- Size
- 3
- Height
- 35.7 mm (1.406 inch)
- Net Weight
- 50 g
- Surface Finish
- Silver passivated
- Limit Temperature
- -40 C to 125 C
- Insulation Strength
- 1010
- Tightening Torque, Min PE Connection
- 1.2 Nm
- Tightening Torque, Min Main Contact
- 0.5 Nm
- Free from Halogens
- Yes
- REACH SVHC
- Lead (7439-92-1)
- RoHS
- Conform
- Product Type
- Insert
- Series
- HE
- Fixing Screw
- M4
- Blade Size (Main Contact)
- SD 0.6 x 3.5, size PZ0, crosshead size PH1
- Stripping Length (Rated Connection)
- 9 mm
Rated Voltage500 V (DIN EN 61984), 600 V AC/DC (UL/CSA)
Number of Poles6
Conductor Cross-Section0.5 to 2.5 mm2
Type of ConnectionScrew connection

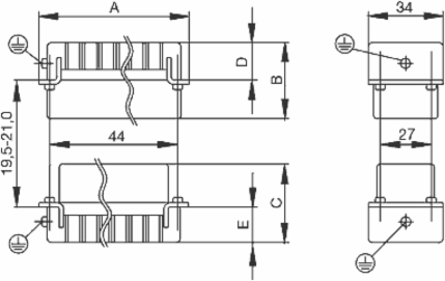

Depth51 mm (2.008 inch)
Width34 mm (1.339 inch)
MaterialCopper alloy
Insulating MaterialPC glass-fibre reinforced (UL-listed and railway-certified)
Volume Resistance2 M
Tightening Torque, Max PE Connection1.5 Nm
Tightening Torque, Max Main Contact0.55 Nm
UL 94 Flammability RatingV-0
Low Smoke Acc. DIN EN 45545-2Yes
ApprovalsCSA, cURus, DNV GL, EAC
ColourBeige
TypePin
Product FamilyHDC insert
Clamping ScrewM3
Blade Size (PE Connection)SD 0.8 x 4.0
Stripping Length (PE Connection)10 mm
