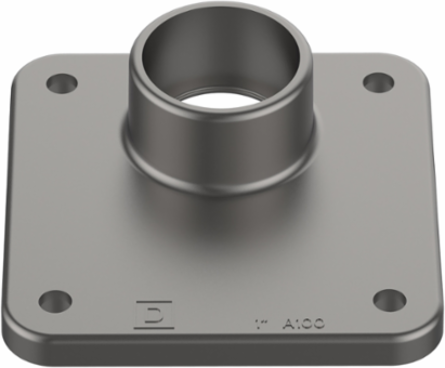

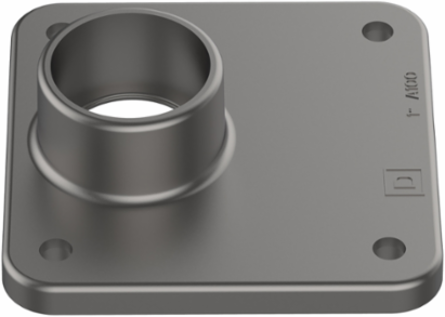

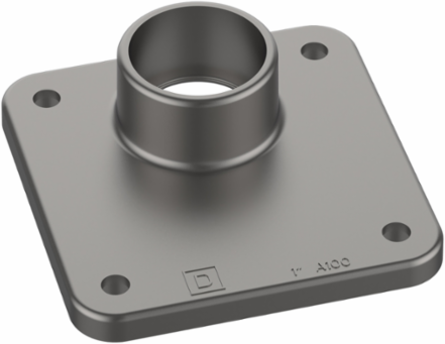

Square D A100 Meter Hub, 1 Inch, Rainproof, UL Listed, Series A
Square D A100 Meter Hub, 1 Inch, Rainproof, UL Listed, Series A
- MPN: A100
- UPC: 785901029489
- PPN: SCH-A100
- UNSPSC: 39121102
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$60.78/ EA
Description

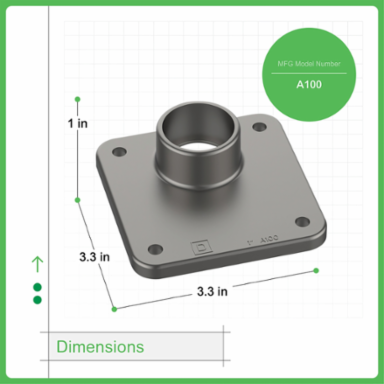

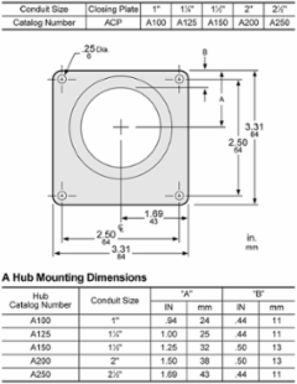

Individual meter sockets have provisions to feed a downstream main lug load center, main breaker load center, or an individually enclosed service disconnect. Units can have a combination of releases, horn, or no bypasses to handle any meter socket situation. Units supplied with hub opening in top end wall require the use of a bolt-on hub or closing plate. This bolt on hub has a 1.00 inch conduit for use on enclosures that require A hubs. Hub is fastened to the enclosure with four 12-24 x 1/2 inch slotted hex washer head screws. This hub is rainproof and measures at 3.31 inches tall, 3.31 inches wide and 1.03 inches deep. Hub is UL Listed.
Features

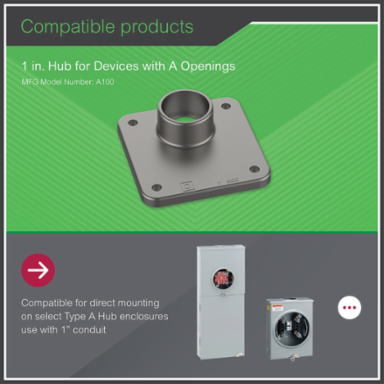

- This Type A hub is compatible for direct mounting on select Homeline and QO CSEDs and meter sockets
- It accommodates 1 inch conduit
- Installation screws have a slotted hexagonal screw head
- It is UL listed and ANSI certified
- Schneider Electric empowers all to make the most of energy and resources, bridging progress and sustainability for all
Specifications
Conformance Attributes
- Product Certifications
- UL Listed
Important Information Attributes
- Persona Type Ids
- EU, EUA, LC, SC
- Product Or Component Type
- hub, conduit entry
- Local Publishable Date
- 2025-11-13
- Scope Perimeter
- Outside of Europe
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- ROHS EUR In Scope
- Yes
- ROHS EUR Full Compliance Status
- Compliant
- China ROHS In Scope
- No
- Without Single Use Plastic
- No
- Return Indicator
- Y
- Function Option
- Standard
- Market Segmentation
- Residential
- H And D Subrange
- RESI
- H And D Enrichment Function
- ACCESSORIES
- H And D Enrichment Class 4
- Meter enclosure accessory
- Device Composition
- adaptor plate
- Hub Type
- A
- Package Weight Lbs
- 99.790 g
- Product Destination
- conduit entry
- Returnability
- Yes
- Sustainable Packaging
- No
- Stocking Flag
- N
- Global Commercial Status
- Commercialised
Persona Type NamesEnd User, Consumer, Contractor, Electrician
Local Data StatusPublishable
Legacy WEEE ScopeIn
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
ROHS EUR StatusCompliant
ROHS EUR Full Compliance Status IdCOMPLIANT
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Function Option IdSTANDARD
Market Segmentation IdRESIDENTIAL
H And D DomainSafety
H And D Enrichment Assignmentyes
H And D Enrichment Class 3Meter Enclosures
Cable Entryconduit entry 1 "
Energy Efficiency OptimizedFalse
Mounting Supportdirect mounting on box
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductSeries A
Shape Of Screw Headslotted hexagonal
Medium DescMeter accessory, hub, 1 in wire size, Series A, rainproof, 3.31 in
Product Kit IdentifierN
Environment Attributes Main
- China ROHS Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- ROHS Exemption Information
- Yes
- Reach Free SHVC
- Yes
- Toxic Heavy Metal Free
- Yes
- Packaging Made With Recycled Cardboard
- No
- Reach Free Of SVHC
- Yes
EU ROHS DirectiveCompliant , Compliant
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- hub, conduit entry
Range Of ProductSeries A
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Depth
- 3.3 in
