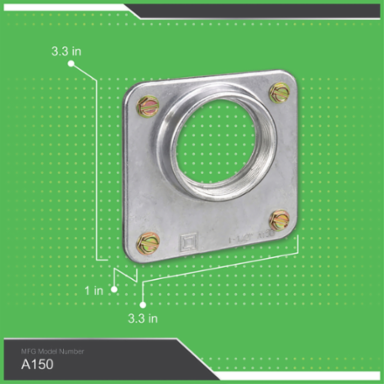

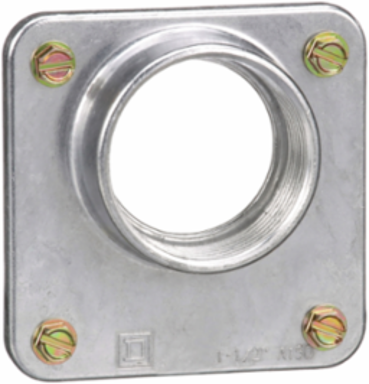

Square D A150 Meter Hub Accessory, 1.50 Inch Wire Size, Rainproof, 3.31 Inch
Square D A150 Meter Hub Accessory, 1.50 Inch Wire Size, Rainproof, 3.31 Inch
- MPN: A150
- UPC: 785901029502
- PPN: SCH-A150
- UNSPSC: 39121102
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$60.78/ EA
Description
Square D individual meter sockets have provisions to feed a downstream main lug load center, main breaker load center, or an individually enclosed service disconnect. Units can have a combination of releases, horn, or no bypasses to handle any meter socket situation. Units supplied with hub opening in top end wall require the use of a bolt on hub or closing plate. This accessory is a hub which is rated for 1.50 in wire size on Series A systems. This hub is rainproof and measures at 3.31 inches tall, 3.31 inches wide and 1.03 inches deep.
Features
- Suitable Only for Use as Service Equipment
- Factory installed mechanical lugs, alternate lugs and NEMA/EUSERC lug landing kits available
- Surface mount, convertible to semi-flush with field installed flange kit
- Mounting channel supplied with three through six position devices
- Consult Local Utility for approval before installation
Specifications
Conformance Attributes
- Product Certifications
- UL Listed
Important Information Attributes
- Persona Type Ids
- EU, EUA, LC, OM, SC
- Product Or Component Type
- hub, conduit entry
- Local Publishable Date
- 2025-11-13
- Scope Perimeter
- Outside of Europe
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- ROHS EUR In Scope
- Yes
- ROHS EUR Full Compliance Status
- Compliant
- China ROHS In Scope
- No
- Without Single Use Plastic
- No
- Return Indicator
- Y
- Function Option
- Standard
- Market Segmentation
- Commercial
- H And D Subrange
- RESI
- H And D Enrichment Function
- ACCESSORIES
- H And D Enrichment Class 4
- Enclosure accessory
- Device Composition
- adaptor plate
- Hub Type
- A
- Package Weight Lbs
- 99.790 g
- Product Destination
- conduit entry
- Returnability
- Yes
- Sustainable Packaging
- No
- Stocking Flag
- N
- Global Commercial Status
- Commercialised
Persona Type NamesEnd User, Consumer, Contractor, Original Equipment Manufacturer, Electrician
Local Data StatusPublishable
Legacy WEEE ScopeIn
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
ROHS EUR StatusCompliant
ROHS EUR Full Compliance Status IdCOMPLIANT
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Function Option IdSTANDARD
Market Segmentation IdCOMMERCIAL
H And D DomainSafety
H And D Enrichment Assignmentyes
H And D Enrichment Class 3Enclosures
Cable Entryconduit entry 1.5 "
Energy Efficiency OptimizedFalse
Mounting Supportdirect mounting on box
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductSeries A
Shape Of Screw Headslotted hexagonal
Medium DescMeter pak accessory, hub, 1.50in wire size, Series A, rainproof, 3.31in
Product Kit IdentifierN
Environment Attributes Main
- China ROHS Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- ROHS Exemption Information
- Yes
- Reach Free SHVC
- Yes
- Toxic Heavy Metal Free
- Yes
- Packaging Made With Recycled Cardboard
- No
- Reach Free Of SVHC
- Yes
EU ROHS DirectiveCompliant , Compliant
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- hub, conduit entry
Range Of ProductSeries A
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Depth
- 3.3 in
