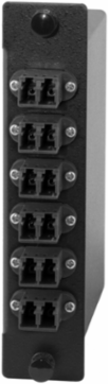

Hubbell Premise Wiring OCLC50 Plug and Play Fiber Cassette, LC, Multi Mode OM2, 12F, 55 dB Return Loss
Hubbell Premise Wiring OCLC50 Plug and Play Fiber Cassette, LC, Multi Mode OM2, 12F, 55 dB Return Loss
- MPN: OCLC50
- UPC: 662620844787
- PPN: HBL-OCLC50
- UNSPSC: 43223310
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1175.57/ EA
Description
Fiber Accessory, Plug and Play Cassette, LC, Multi Mode 50.
Features
- Compact Universal Design
- Ten Gigabit Ethernet Assurance
- Quick and Easy Plug-n-Play Installation
- Standard Product
Specifications
Specifications
- Country of Origin
- Taiwan
- Industry Standard(s)
- Telcordia GR-326-CORE;TIA-568-C.3;TIA-604-FOCIS
- Application
- Interconnect
- Fiber Size
- 250 Micron
- Insertion Loss
- 0.75 dB Max
- Return Loss
- 55
- Special Features
- Standard Product
- Sub Brand
- OptiChannel
- Connectivity
- Cassette
- Class Code
- A68
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Sub Class Code
- HPWALL2
- Material
- Ceramic
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 12.500 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 25
- Lowest Level UOM
- Each
Width3.800 in
PerformanceOptical - Total insertion loss - Less than 1.5dB (test data included)
ColorBlack
Fiber TypeOM2
Repeatability0.1 dB
Service Life500 matings
StandardTelcordia GR-326-CORE;TIA-568-C.3;TIA-604-FOCIS
Temperature Rating0C to 70C
StyleLC Duplex 12F
Description - InvoiceFIBR,CASSET,LCD-MPO,OM2,12F,TYPA,BK
Harmonization Code8536700000
MSDS FlagNo
Material - Mounting HardwareSnap-In
PolarityType A
BOX SIZE5.200x5.700x9.400 (in)
Carton - Number of Sub Packs25
Carton - SCC-14 Next Lower Level Sub Pack662620844787
Each - Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Yes
