Hubbell Premise Wiring OCSC50 Fiber Accessory Cassette, SC Duplex, Multi Mode 50, 250 Micron, 0.75 dB Max
Hubbell Premise Wiring OCSC50 Fiber Accessory Cassette, SC Duplex, Multi Mode 50, 250 Micron, 0.75 dB Max
- MPN: OCSC50
- UPC: 662620844817
- PPN: HBL-OCSC50
- UNSPSC: 43223310
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1038.02/ EA
Description

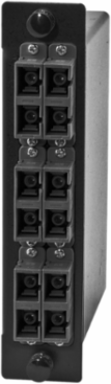

Fiber Accessory, Plug and Play Cassette, SC Duplex, Multi Mode 50.
Features
- Compact Universal Design
- Ten Gigabit Ethernet Assurance
- Quick and Easy Plug-n-Play Installation
- Standard Product
Specifications
Specifications
- Country of Origin
- TW
- Each - Width
- 3.600 in
- Performance
- Optical - Total insertion loss - Less than 1.5dB (test data included)
- Color
- Black
- Fiber Type
- OM2
- Repeatability
- 0.1 dB
- Service Life
- 500 matings
- Standard
- Telcordia GR-326-CORE;TIA-568-C.3;TIA-604-FOCIS
- Temperature Rating
- 0C to 70C
- Style
- SC Duplex
- Description - Invoice
- FIBR,CASSET,SCD-MPO,OM2,12F,TYPA,BK
- Harmonization Code
- 8536700000
- MSDS Flag
- No
- Material - Mounting Hardware
- Snap-In
- Polarity
- Type A
- BOX SIZE
- 10.700x5.800x16.200 (in)
- Carton - Number of Sub Packs
- 25
- Carton - SCC-14 Next Lower Level Sub Pack
- 662620844817
- Each - Pack Description
- Each
Width3.600 in
Industry Standard(s)Telcordia GR-326-CORE;TIA-568-C.3;TIA-604-FOCIS
ApplicationInterconnect
Fiber Size250 Micron
Insertion Loss0.75 dB Max
Return Loss55
Special FeaturesStandard Product
Sub BrandOptiChannel
ConnectivityCassette
Class CodeA68
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeHPWALL2
MaterialCeramic
Base Unit of MeasureEA
Carton - Gross Weight per Pack12.500 lb.
Carton - Pack DescriptionCarton
Carton - Total Units25
Lowest Level UOMEach
Certifications
- EU RoHS Indicator
- Yes
