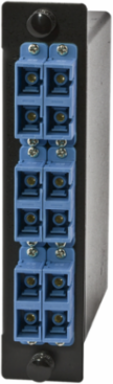

Hubbell Premise Wiring OCSCSM Fiber Accessory SC Duplex Plug and Play Cassette, 250 Micron
- MPN: OCSCSM
- UPC: 662620844831
- PPN: HBL-OCSCSM
- UNSPSC: 43223310
CAD
$1236.54
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Fiber Accessory, Plug and Play Cassette, SC Duplex, Single Mode.
Features
- Compact Universal Design
- Ten Gigabit Ethernet Assurance
- Quick and Easy Plug-n-Play Installation
- Standard Product
Specifications
Key Specifications
- Country of Origin
- United States
- Industry Standard(s)
- Telcordia GR-326-CORE;TIA-568-C.3;TIA-604-FOCIS
- Application
- Interconnect
- Fiber Size
- 250 Micron
- Insertion Loss
- 0.75 dB Max
- Return Loss
- 55
- Special Features
- Standard Product
- Sub Brand
- OptiChannel
- Connectivity
- Cassette
- Class Code
- A68
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Sub Class Code
- HPWALL2
- Material
- Ceramic
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 12.500 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 25
- Lowest Level UOM
- Each
Width3.600 in
PerformanceOptical - Return loss - More than 50dB;Optical - Total insertion loss - Less than 1.1dB (test data included)
ColorBlue
Fiber TypeOS2
Repeatability0.1 dB
Service Life500 matings
StandardTelcordia GR-326-CORE;TIA-568-C.3;TIA-604-FOCIS
Temperature Rating0C to 70C
StyleSC Duplex
Description - InvoiceFIBR,CASSET,SCD-MPO,OS2,12F,TYPA,BL
Harmonization Code8536700000
MSDS FlagNo
Material - Mounting HardwareSnap-In
PolarityType A
BOX SIZE10.700x7.400x16.200 (in)
Carton - Number of Sub Packs25
Carton - SCC-14 Next Lower Level Sub Pack662620844831
Each - Pack DescriptionEach
NAICS Code3342104145
Certifications
- EU RoHS Indicator
- Yes
