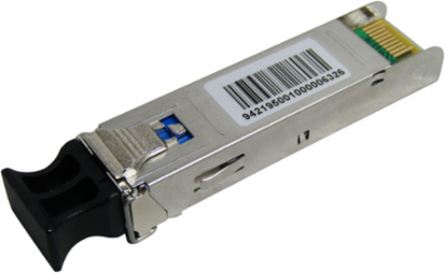

Schneider Electric TCSEAAF1LFS00 Fiber Optic Adaptor SFP Module, 1000BASE-LX, 0.04 kg, LC Connector

MPN: TCSEAAF1LFS00
PPN: SCH-TCSEAAF1LFS00
UNSPSC: 43221811

$1475.57

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This product is part of the ConneXium range, an offer of Ethernet connecting devices. This fibre optic adaptor has 1000BASE-LX Ethernet port for TCSESM switches. This product offers you a smart and flexible way to integrate Ethernet solutions into your operation. It is furnished with LC connector. It supports single mode 62.5/125µm, multi mode 50/125µm and multi mode 62.5/125µm transmission. It weighs 0.04kg.

Features

SFP transceivers based on single/multi mode/RJ45
Gigabit Ethernet for flexibility in product selection
Provide high reliability to the network connectivity
Follows industrial standards

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	United States

Depth	50 mm

Communications & Management Attributes

Communication Port Type	FO port

Important Information Attributes

Persona Type Ids	EU, OM8, SI
Mode Of Transmission	single mode 9/125 µmmulti mode 50/125 µm, multi mode 62.5/125 µm
Local Publishable Date	2026-08-21
Device Type	Networking and Cable Solutions - Networking Devices
Traceability	No
Scope Perimeter	At least in Europe
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	2023
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	4
Function Option	Advanced
Market Segmentation	Industrial
Operating Distance	20 Km
Product Availability	Stock - Normally stocked in distribution facility
Range Of Product	Modicon Networking
Sustainable Packaging	No
Width Nominal	20 mm
Accessory / Separate Part Destination	gigabit ports with LC connector
Accessory / Separate Part Designation	fiber optic adaptor
Customs Code	8517620090

Persona Type Names	End User, OEM - Control Panelbuilder, System Integrator
Local Data Status	Publishable
Return Indicator	N
Serviceability	No
Weee Scope	Out
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	5
Without Single Use Plastic	No
Tier Id	4
Function Option Id	ADVANCED
Market Segmentation Id	INDUSTRIAL
Product Kit Identifier	N
Port Ethernet	1000BASE-LX
Product Or Component Type	SFP module
Returnability	No
Height Nominal	18 mm
Accessory / Separate Part Category	connection accessories
Accessory / Separate Part Type	fiber optic adaptor
Nbr. Of Units In Pkg.	1
Warranty In Months	18

Environment Attributes Main

Product Compatibility	MCSESM switch, TCSESM switch
Recycled Metal Content At Cr Level	0 %
Ambient Air Temperature For Operation	0-60 °C
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
