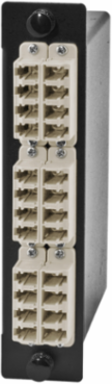

Hubbell Premise Wiring OCLCQ62 Fiber Optic Cassette, LC-MT, OM1 Fiber, 24 Strands, Compact Design
- MPN: OCLCQ62
- UPC: 662620214443
- PPN: HBL-OCLCQ62
- UNSPSC: 43223310
CAD
$1667.69
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Fiber Optic Cassette, LC-MT, OM1 Fiber, 125, 24-Fiber Strands.
Features
- Compact Universal Design
- Ten Gigabit Ethernet Assurance
- Quick and Easy Plug-n-Play Installation
- Standard Product
Specifications
Key Specifications
- Country of Origin
- Taiwan
- Industry Standard(s)
- Telcordia GR-326-CORE;TIA-568-C.3;TIA-604-FOCIS
- Application
- Interconnect
- Environmental Conditions
- Indoor
- Fiber Type
- OM1
- Repeatability
- 0.1 dB
- Service Life
- 500 matings
- Standard
- Telcordia GR-326-CORE;TIA-568-C.3;TIA-604-FOCIS
- Temperature Rating
- 0C to 70C
- Display Size
- 5.1" X 1.1"
- Class Code
- A68
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Sub Class Code
- HPWALL2
- Material
- Ceramic
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 16.250 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 25
- Lowest Level UOM
- Each
Width1.900 in
PerformanceOptical - Total insertion loss - Less than 1.5dB (test data included)
ColorBeige
Fiber Size250 Micron
Insertion Loss0.75 dB Max
Return Loss55
Special FeaturesStandard Product
Sub BrandOptiChannel
ConnectivityCassette
StyleLC Quad 24F
Description - InvoiceFIBR,CASSET,LCQ-2MPO,OM1,24F,TYPA,BE
Harmonization Code8536700000
MSDS FlagNo
Material - Mounting HardwareSnap-In
PolarityType A
BOX SIZE10.700x7.600x16.200 (in)
Carton - Number of Sub Packs25
Carton - SCC-14 Next Lower Level Sub Pack662620214443
Each - Pack DescriptionEach
NAICS Code3342104145
