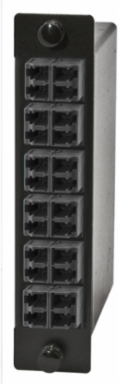

Hubbell Premise Wiring OCLCD50 Fiber Optic Cassette, LC Duplex 24F, OM2 Fiber, 250 Micron
- MPN: OCLCD50
- UPC: 662620304397
- PPN: HBL-OCLCD50
- UNSPSC: 43223310
CAD
$1667.69
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Fiber Optic Cassettes, LV-MT, OM2 Fiber/125, 24-Fiber Strands, OM2 Fiber, Yellow.
Features
- Compact Universal Design
- Ten Gigabit Ethernet Assurance
- Quick and Easy Plug-n-Play Installation
- Standard Product
Specifications
Key Specifications
- Country of Origin
- United States
- Performance
- Optical - Total insertion loss - Less than 1.5dB (test data included)
- Color
- Black
- Fiber Size
- 250 Micron
- Insertion Loss
- 0.75 dB Max
- Return Loss
- 55
- Special Features
- Standard Product
- Sub Brand
- OptiChannel
- Connectivity
- Cassette
- Style
- LC Duplex 24F
- Description - Invoice
- FIBR,CASSET,LCD-2MPO,OM2,24F,TYPA,BK
- Harmonization Code
- 8536700000
- MSDS Flag
- No
- Material - Mounting Hardware
- Snap-In
- Polarity
- Type A
- BOX SIZE
- 0.000x0.000x0.000 (in)
- Carton - Number of Sub Packs
- 25
- Carton - SCC-14 Next Lower Level Sub Pack
- 662620304397
- Each - Pack Description
- Each
- NAICS Code
- 3342104145
Industry Standard(s)Telcordia GR-326-CORE;TIA-568-C.3;TIA-604-FOCIS
ApplicationInterconnect
Environmental ConditionsIndoor
Fiber TypeOM2
Repeatability0.1 dB
Service Life500 matings
StandardTelcordia GR-326-CORE;TIA-568-C.3;TIA-604-FOCIS
Temperature Rating0C to 70C
Display Size5.1" X 1.1"
Class CodeA68
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeHPWALL2
MaterialCeramic
Base Unit of MeasureEA
Carton - Gross Weight per Pack12.500 lb.
Carton - Pack DescriptionCarton
Carton - Total Units25
Lowest Level UOMEach
