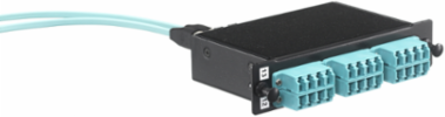

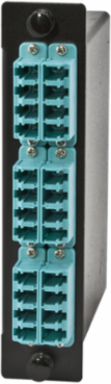

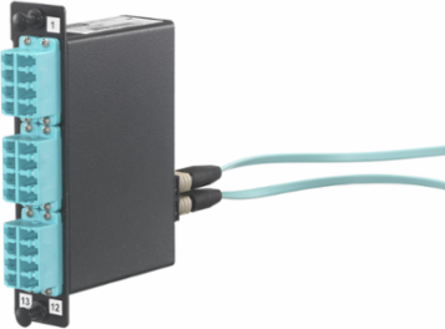

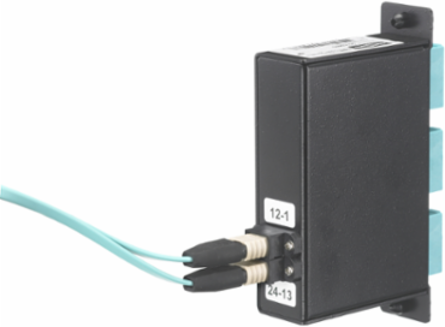

Hubbell Premise Wiring OCLCQ50G4 Fiber Optic Cassette LC-MT OM4 24-Fiber 6.7 Inch Width 250 Micron
- MPN: OCLCQ50G4
- UPC: 662620304434
- PPN: HBL-OCLCQ50G4
- UNSPSC: 43223310
CAD
$1573.29
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Fiber Optic Cassette, LC-MT, OM2 Fiber, 125, 24-Fiber Strands, OM4 Fiber.
Features
- Compact Universal Design
- Ten Gigabit Ethernet Assurance
- Quick and Easy Plug-n-Play Installation
- Standard Product
Specifications
Key Specifications
- Country of Origin
- United States
- Industry Standard(s)
- Telcordia GR-326-CORE;TIA-568-C.3;TIA-604-FOCIS
- Application
- Interconnect
- Fiber Size
- 250 Micron
- Insertion Loss
- 0.75 dB Max
- Return Loss
- 55
- Special Features
- Standard Product
- Sub Brand
- OptiChannel
- General Literature Asset 1 Display Text
- FCR-X Series Premium Rack Mount Solution
- Connectivity
- Cassette
- Class Code
- A68
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Sub Class Code
- HPWALL2
- Material
- Ceramic
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 12.500 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 25 EA
- Lowest Level UOM
- Each
Width6.700 in
PerformanceOptical - Total insertion loss - Less than 1.5dB (test data included)
ColorBlack
Fiber TypeOM4
Repeatability0.1 dB
Service Life500 matings
StandardTelcordia GR-326-CORE;TIA-568-C.3;TIA-604-FOCIS
Temperature Rating0C to 70C
General Literature Asset 2 Display TextFCR Series Premium Rack Mount Solution
StyleLC Quad 24F
Description - InvoiceFIBR,CASSET,LCQ-2MPO,OM4,24F,TYPA,AQ
Harmonization Code8536700000
MSDS FlagNo
Material - Mounting HardwareSnap-In
PolarityType A
BOX SIZE0.000x0.000x0.000 (in)
Carton - Number of Sub Packs25
Carton - SCC-14 Next Lower Level Sub Pack662620304434
Each - Pack DescriptionEach
NAICS Code3342104145
Certifications
- EU RoHS Indicator
- Yes
