Hubbell Premise Wiring DFPCLCSTS2SM OS2 Singlemode Fiber Patch Cord 2 Meter LC to ST Yellow
- MPN: DFPCLCSTS2SM
- UPC: 662620312866
- PPN: HBL-DFPCLCSTS2SM
CAD
$118.88
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

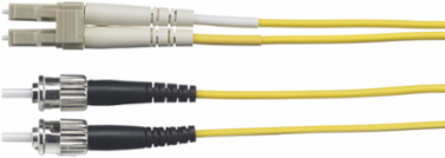

OS2 Singlemode Fiber Patch Cord 2 Meter LC to ST Yellow
Documentation & Downloads
Specifications
Additional
| Mode | OS2, SM |
|---|---|
| Connector Type | LC to ST |
| Color | Yellow |
| Cable Diameter | 1.6 mm to 2.0 mm |
| Mated Pair Return Loss | > 55 dB |
| Mating Durability | 500 Cycles, < 0.75 dB |
| Operating Temperature Range | 0 C to 70 C (32 F to 158 F) |
| Cable Type | Duplex Zipcord, OS2 |
| Length | 2 m (6.56 ft) |
|---|---|
| Fiber Type | Plenum |
| Ferrule Material | Zirconia Ceramic |
| Mated Pair Insertion Loss | < 0.35 dB (0.15 dB Typical) |
| Polarity | A-B |
| Minimum Bend Radius | 25 mm (1.0 in.) |
| Tensile Rating, Short Term | 11.24 lb (50 N) |
