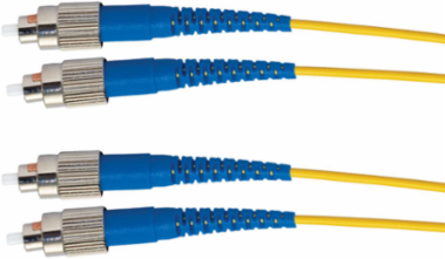

Hubbell Premise Wiring DFPCFCFCS5SM 5 Meter FC to FC OS2 Singlemode Yellow Fiber Patch Cord
- MPN: DFPCFCFCS5SM
- UPC: 662620316734
- PPN: HBL-DFPCFCFCS5SM
CAD
$203.35
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
5 Meter FC to FC OS2 Singlemode Yellow Fiber Patch Cord
Documentation & Downloads
Specifications
Additional
| Length | 5 m (16.41 ft) |
|---|---|
| Connector Type | FC to FC |
| Fiber Type | Plenum |
| Cable Diameter | 2.0 to 3.0 mm |
| Mated Pair Return Loss | > 55 dB |
| Polarity | A-B |
| Operating Temperature Range | 0C to 70C (32F to 158F) |
| Ferrule Material | Zirconia Ceramic |
| Fiber Mode | OS2, Singlemode (SM) |
|---|---|
| Cable Type | Duplex Zipcord |
| Color | Yellow |
| Mated Pair Insertion Loss | < 0.35 dB (0.15 dB Typical) |
| Mating Durability | 500 Cycles, < 0.75 dB |
| Minimum Bend Radius | 30 mm (1.2 in.) |
| Tensile Rating, Short Term | 11.24 lb (50 N) |
| Compliance | TIA-568.3, TIA-604-FOCIS, Telcordia GR-326-CORE, TIA-492CAAB, ANSI/ICEA S-83-596, TIA-598 |
