Hubbell Premise Wiring DFPCFCFCS1SM Fiber Patch Cord, 1 Meter, Plenum, FC to FC, OS2, Yellow
- MPN: DFPCFCFCS1SM
- UPC: 662620316703
- PPN: HBL-DFPCFCFCS1SM
CAD
$191.28
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

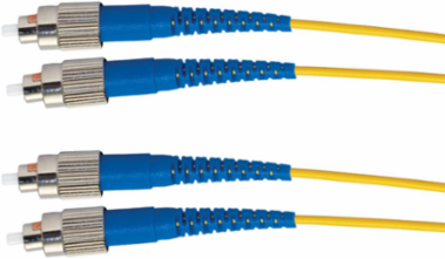

Fiber Patch Cord, 1 Meter, Plenum, FC to FC, OS2, Yellow
Documentation & Downloads
Specifications
Additional
| Fiber Type | Plenum OS2 Singlemode |
|---|---|
| Connector Type | FC to FC |
| Cable Diameter | 2.0 mm to 3.0 mm |
| Mated Pair Insertion Loss | < 0.35 dB (0.15 dB Typical) |
| Polarity | A-B |
| Minimum Bend Radius | 30 mm (1.2 in) |
| Tensile Rating, Short Term | 11.24 lb (50 N) |
| UPC | 662620316703 |
| Length | 1 m (3.28 ft) |
|---|---|
| Cable Type | Duplex Zipcord |
| Ferrule Material | Zirconia Ceramic |
| Mated Pair Return Loss | > 65 dB |
| Mating Durability | 500 Cycles, < 0.75 dB |
| Operating Temperature Range | 0C to 70C (32F to 158F) |
| Color | Yellow |
| Compliance | TIA-568.3, TIA-604-FOCIS, Telcordia GR-326-CORE, TIA-492CAAB, ANSI/ICEA S-83-596, TIA-598 |
