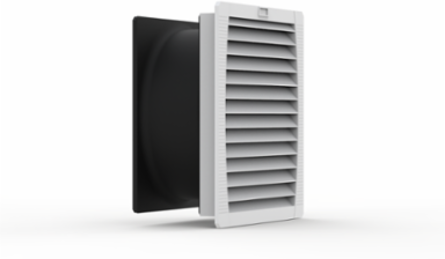

nVent Hoffman EFE700R5 EMC Filter Fan 845 m3/h, 230V, IP54, 4.5 kg, Plastic, 320x320x155 mm
- MPN: EFE700R5
- UPC: 783510475840
- PPN: HOF-EFE700R5
CAD
$3071.38
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This EMC vertical filter fan, EFE, with a IP 54 protection degree, is easy to install thanks to its click-in feature. This EMC Filter Fans, EFE, EFE700R5 item measures 320x320x155mm has a material of Plastic color Light Gray, finish Textured.
Features
- Description: EMC capable filter fan. Special EMC screen in combination with stainless steel contact strips guarantee good contact with enclosure surface. Cutting edge surface of the enclosure needs to be blank for contact. Long service life.
- Approvals: CE, GOST, UR, cUL.
- Material: Plastic, UL 94-V0. EMC screen: stainless steel, contact strips.
- Pack quantity: 1 fan with filter.
- The filter fan is reliable due to its high quality motor, as well as being easy to install
- EMC performance is maintained when installed on an EMC enclosure
- Component failure and unnecessary downtime is avoided as water, dust and electromagnetic interferences are prevented from entering the enclosure and the reliable motor ensures that there is constant ventilation
- The click-in feature reduces the customer's labour cost due to the ease of installation
- The filter fan should be installed together with at least one exhaust filter, EFAE
- Filter mat (EN779) G4
- Bearing Type: Sleeve
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 320
- Power @ 50 Hz
- 140
- Airflow Volume, With Filter
- 560/625
- Lifespan, L10 @ 40 C
- 40,000
- Connection Type
- Spring Type
- Works With
- IEC
- Product Family
- Free-Standing
- Finish
- Textured
- Nominal Voltage
- 230
- Filter Efficiency
- 90
- Protection Fuse
- 6
- Weight
- 4.5
Height (H)320
Depth (D)155
Power @ 60 Hz197
Aiflow Volume, Without Filter845/875
Enclosure Cutout292 x 292
Nominal Current0.62/0.86
Enclosure MaterialGalvanized Steel
MaterialPlastic
ColorLight Gray
Frequency50/60 Hz
Noise Level66
Protection RatingIP54
