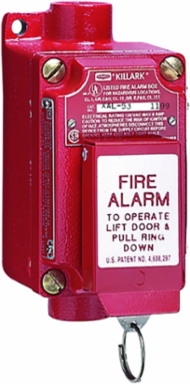

Killark XAL-53 Aluminum Fire Alarm Station 4 Inch H x 7.5 Inch L x 6 Inch W, Pull-Ring Activation
Killark XAL-53 Aluminum Fire Alarm Station 4 Inch H x 7.5 Inch L x 6 Inch W, Pull-Ring Activation
- MPN: XAL-53
- UPC: 783936880389
- PPN: HBL-XAL-53
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1013.77/ EA
Description
Killark XCS Series Fire Alarm Station for Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas where Type 7 & 9 protection is required.
Features
- Enclosure is made of copper free aluminum alloy
- Conduit openings are 3/4” NPT feed through.
- Red, textured powder epoxy paint finish is standard on box and cover to provide high visibility for alarm station.
- Bilingual nameplates included per CSA requirement.
- Internal ground screw is standard.
- The alarm station is activated by lifting the front cover and pulling down ring. This quick easy to use two-step process prevents unintentional operation.
Specifications
Dimensions
- Depth
- 4-1/2
- Height
- 4 in
- Weight
- 2.67 lb
Gross Weight with Packaging2.67
Length7.5 in
Width6 in
Certifications and Compliance
- CSA File Number
- LR31085
UL File NumberE50498
General
- Action
- SP
- Ambient Temp. Range
- UL: -25 to 40 ºC, CSA: -50 to 40 ºC, IEC: -20 to 40 °C
- Back Box Type
- SWB
- Number Of Poles
- 1
- Type
- Aluminum Fire Alarm Station With Pull-Ring Activation
ActuatorLift Cover, Pull ring
ApplicationHazardous areas due to the presence of flammable gases or vapors, combustible dusts, or easily ignitable fibers or flyings. Installation at petroleum refineries, chemical and petrochemical plants, storage areas, and other processing facilities where hazardous substances are handled or stored. Areas where emergency control of fire alarm or signal circuits is required.
ColorRed
SeriesXAL
UPC783936880389
Electrical Ratings
- Amperage Rating
- 10 A
- Frequency Rating
- 50/60 Hz
Contact Rating7200 VA (make), 720 VA (break), 10A cont. @ 600V AC; 2.5A cont. @ 600V DC.
Logistics
- Carton Quantity
- 1 EA
