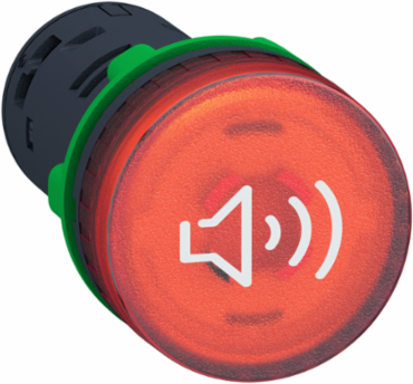

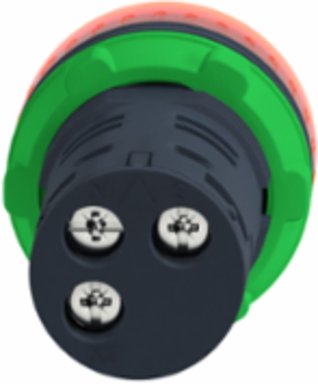

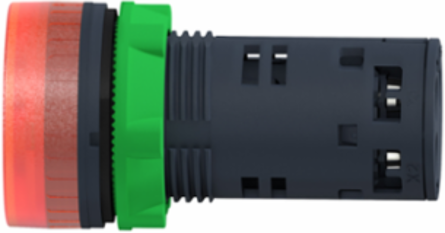

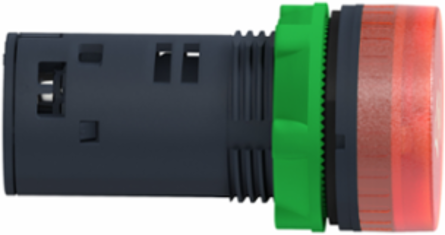

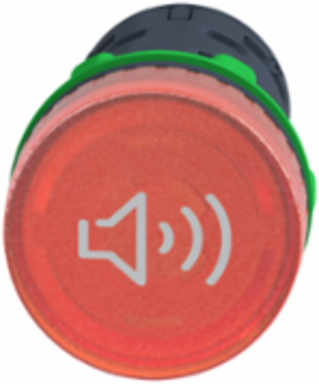

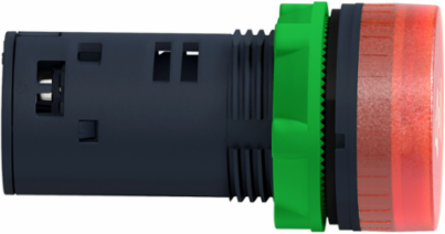

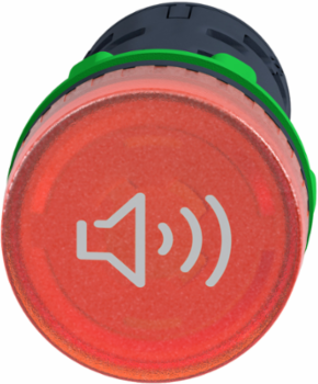

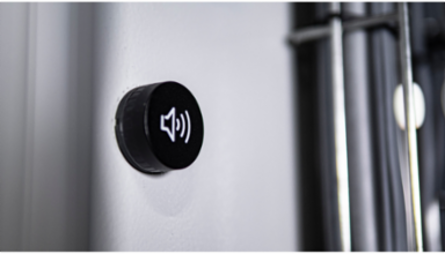

Schneider Electric XB5KS2B4 Harmony XB5 Illuminated Buzzer, 22mm, Red, 24V AC/DC, IP69 Rating

MPN: XB5KS2B4
PPN: SCH-XB5KS2B4

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$88.52

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This indicating bank buzzer is an accessory designed as an audible and signaling unit for custom assembly. It has a continuous or intermittent signal and its sound acoustic level is adjustable. It complies with EN/IEC60947-1, EN/IEC60947-4-1, EN/IEC60947-5-1, JIS C 4520, UL 508, CSA C22.2 No 14 standards. It is also dust, impact, high pressure washer, vibration and corrosion resistant thanks to its IP69, IP67, IP66 protection, making it ideal for operation in harsh environments.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Indonesia, Singapore, United States

Depth	55 mm

Physical Attributes

Cap Operator Or Lens Color	red

Important Information Attributes

Persona Type Ids	BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Current Consumption	<= 58 mA, <= 58 mA
Certificate Agency	UL Listed, CSA, BV
Carbon Footprint Of The End-of-life Phase [C1 To C4]	0 kg CO2 eq., 0.0042575344
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	0.9 kg CO2 eq., 0.9435727734
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	1
Weee Product Category	5
Eoli Availability Display	Yes
Product Repair Index Dam Doc	XB4BS8442-ENVREPAIR-A-EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1930
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Bezel Material	plastic
Noise Level	90 dB 6.8 kHz 0.1 m +/- 10 %
Product Availability	Stock - Normally stocked in distribution facility
Product Repair Index	A
Range Of Product	Harmony XB5
Returnability	Yes
Software Version	EIME v5.6.0.1
Supply Frequency	50/60 Hz
Total Lifecycle Carbon Footprint	2 kg CO2 eq.
Supply Voltage 31 Supply Voltage	24 V
Database Version	CODDE-2016-11
Pcr Version	PCR-ed3-EN-2015 04 02
Type Of Verification For The Pep	Independent internal review
Functional-unit Description	Provide the audio and visual(Optional) signaling for 10 years at 5% use rate.
Functional-unit Unit	unité (unit)
Energy Model - Manufacturing [A1-a3]	Energy model used: Indonesia
Energy Model - Use [B6]	Electricity mix; AC; <lt/> 1kV; EU-27
Recyclability Potential In %	13
Width Nominal	29 mm
Cap/Operator Or Lens Colour	red
Package Weight(Lbs)	28.000 g
Take-back	No
Customs Code	8531809051

Persona Type Names	Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market Segmentation	Commercial, Industrial
Cap Operator Or Lens Color	red
Carbon Footprint Of The Distribution Phase [A4]	0.0034836061, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0.0003301293, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	0.6 kg CO2 eq., 0.5974464
Local Publishable Date	2026-03-26
Stocking Flag	Y
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2502013EN
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	5
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N

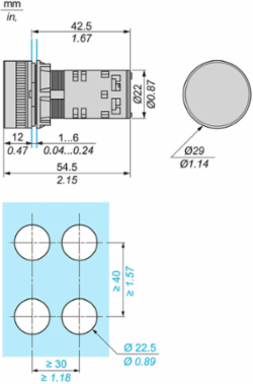

Mounting Diameter	22 mm
Overvoltage Category	class II conforming to IEC 60536
Product Or Component Type	annunciator
Protective Treatment	TH
Resistance To High Pressure Washer	9000000 Pa 80 °C 0.1 m

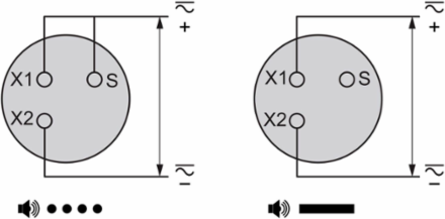

Signalling Type	continuous or intermittent tone
Supply Circuit Type	AC/DC
Sustainable Packaging	Yes
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Pep Code	ENVPEP2502013EN
Pep Verification Date	2025-02-23
Psr Version	PSR-0005-ed2-EN-2016 03 29
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	10
Energy Model - Installation [A5]	Electricity mix; AC; <lt/> 1kV; EU-27
Energy Model - End Of Life [C1-c4]	Electricity mix; AC; <lt/> 1kV; EU-27
Height Nominal	29 mm
[Us] Rated Supply Voltage	24 V24 V +/- 10 %
Nbr. Of Units In Pkg.	1
Product Repair Index - Dam Document Id	XB4BS8442-ENVREPAIR-A-EN
Warranty (In Months)	18

Environment Attributes Main

Ambient Air Temperature For Operation	-40-70 °C, -40-70 °C
Take Back	No
China Rohs Regulation	X
Carbon Footprint	1.5490904431
Environmental Disclosure	ENVPEP2502013EN
Nema Degree Of Protection	UL type 4X/13
Packaging Without Single Use Plastic	Yes
Pep Code	ENVPEP2502013EN
Pcr Version	PCR-ed3-EN-2015 04 02
Type Of Verification For The Pep	Independent internal review

Ambient Air Temperature For Storage	-40-70 °C, -40-70 °C
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Circularity Profile	ENVEOLI2502013EN
Eu Rohs Directive	Compliant By Exemption
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2025-02-23
Psr Version	PSR-0005-ed2-EN-2016 03 29
