Hubbell Premise Wiring S1PTFFGY Fire-Rated Poke-Through, 4 Inch Core Hole, Gray Cover, Multi-Service Feed
- MPN: S1PTFFGY
- UPC: 783585371726
- PPN: HBL-S1PTFFGY
- UNSPSC: 39121328
CAD
$811.71
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

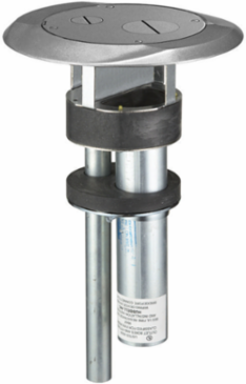

SystemOne, Fire-Rated Poke-Through, One-Piece, Furniture Feed, with Gray Painted Cover
Features
- Multi-Service Furniture Feed FRPT
- Up to 4 Hour Fire Rating
- (1) 3/4"Threaded Hub for Power and (1) 1½" Threaded Hub for Data
- Aluminum Cover and Flange with Gray Powder Paint Finish
- S1FRPTJB Junction Box Included
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
- Width
- 9.600 in
- Performance
- Electrical - Fire Resistance Rating - 4-Hrs. (D900);Mechanical - Max. Cu Cross Section - 3/4 in. Power EMT .072 sq. in.
- Finish
- Gray
- Standard
- cULus Listed;Meets ADA Standards;UL 514A Listed
- Finish Type
- Gray
- Style
- FRPT Kits
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Material - Mounting Hardware
- Step-Down Installation
- Material
- Composite
- BOX SIZE
- 9.200x17.900x9.600 (in)
- Carton - Number of Sub Packs
- 1
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783585371726
- Case Weight
- 5.350 lb.
- Lowest Level UOM
- Each
Core Hole4 Inch SystemOne
Industry Standard(s)cULus Listed;Meets ADA Standards;UL 514A Listed
Cable EntryThreaded Hubs
Number of Outlet(1) 3/4" & (1) 1½" Threaded Hub Multi-Service
Cover TypeFurniture Feed
Number Of Outlets(1) 3/4" & (1) 1½" Threaded Hub Multi-Service
Description - InvoiceS1 FRPT, FURN FEED, 1-PC, GY
Harmonization Code7616995190
MSDS FlagNo
ConstructionFabricated
Base Unit of MeasureEA
Carton - Gross Weight per Pack5.350 lb.
Carton - Pack DescriptionCarton
Carton - Total Units1
Each - Pack DescriptionEach
NAICS Code3359326106
