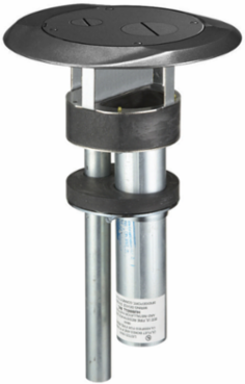

Hubbell Premise Wiring S1PTFFBL Fire-Rated One-Piece Furniture Feed, 4 Inch Core Hole, Black Aluminum Cover
- MPN: S1PTFFBL
- UPC: 783585371702
- PPN: HBL-S1PTFFBL
- UNSPSC: 39121328
CAD
$811.71
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
SystemOne, Fire-Rated Poke-Through, One-Piece, Furniture Feed, with Painted Aluminum Cover
Features
- Multi-Service Furniture Feed FRPT
- Up to 4 Hour Fire Rating
- (1) 3/4"Threaded Hub for Power and (1) 1½" Threaded Hub for Data
- Aluminum Cover and Flange with Aluminum Powder Paint Finish
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | China |
|---|---|
| Width | 9.200 in |
| Performance | Electrical - Fire Resistance Rating - 4-Hrs. (D900);Mechanical - Max. Cu Cross Section - 3/4 in. Power EMT .072 sq. in. |
| Color | Black |
| Number of Outlet | (1) 3/4" & (1) 1½" Threaded Hub Multi-Service |
| Cover Type | Furniture Feed |
| Number Of Outlets | (1) 3/4" & (1) 1½" Threaded Hub Multi-Service |
| Description - Invoice | S1 FRPT, FURN FEED, 1-PC, BL |
| Harmonization Code | 7616995190 |
| MSDS Flag | No |
| Construction | Fabricated |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 5.400 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 1 |
| Each - Pack Description | Each |
| Pallet - GTIN - Package | 70783585371701 |
| Pallet Length | 48.000 in |
| Pallet Width | 40.000 in |
| Core Hole | 4 Inch SystemOne |
|---|---|
| Industry Standard(s) | cULus Listed;Meets ADA Standards;UL 514A Listed |
| Cable Entry | Threaded Hubs |
| Finish | Black |
| Standard | cULus Listed;Meets ADA Standards;UL 514A Listed |
| Finish Type | Black |
| Style | FRPT Kits |
| Freight Class Code | 06168002 |
| Image Actual Or Representative | A |
| Material - Mounting Hardware | Step-Down Installation |
| Material | Composite |
| BOX SIZE | 9.400x17.500x9.200 (in) |
| Carton - Number of Sub Packs | 1 |
| Carton - SCC-14 Next Lower Level Sub Pack | 00783585371702 |
| Case Weight | 5.400 lb. |
| Lowest Level UOM | Each |
| Pallet Height | 47.000 in |
| Pallet Weight | 297.000 lb. |
| NAICS Code | 3359326106 |
