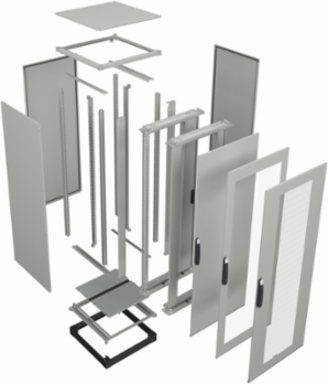

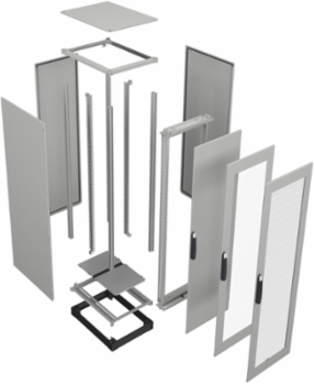

Schneider Electric NSYRCK24 Spacial SF/SM 19 Inch Fixed Rack, 1200 mm Width, 400 kg Load Capacity
- MPN: NSYRCK24
- PPN: SCH-NSYRCK24
CAD
$93.97
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

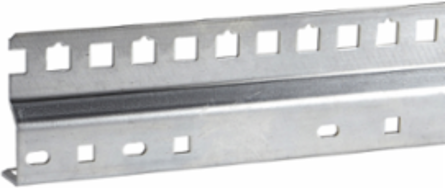

Spacial SF / SM fixed rack 19 inches. Enclosure width is 1200 mm. 24 Units of 19 inch. Electronic application. Mounting accessory. Mounting on structure of enclosure. Adjustable in depth every 25 mm. Steel made, zinc coated surface finish. permissible load is 400 kg. 2 uprights and fixing elements incl.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Spain, France
- Width
- 31.5 in
Height47.24 in
Depth60 mm
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Enclosure Nominal Dimensions
- - H: 1200 mm, - H: 1200 mm, - H: 1200 mm, - H: 1200 mm
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 8 kg CO2 eq., 7.659061494
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 14 kg CO2 eq., 14.15639596
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Device Application
- electronic application
- Energy Efficiency Optimized
- False
- Material
- steel
- Mounting Support
- 19" fixed support bracket
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Quantity Per Set
- set of 1
- Rack Type
- fixed
- Returnability
- No
- Surface Finish
- zinc coated
- Total Lifecycle Carbon Footprint
- 23 kg CO2 eq.
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- Protect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure with dimensions H2000mm x W800mm x D600mm, while protecting against mechanical impacts (IK10-IEC 62262) and the penetration of solid objects and liquids (IP55-IEC 60529) as per the standard IEC 62208.
- Functional-unit Unit
- unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Production mix; Low voltage; FR
- Height Nominal
- 1200 mm
- Width Nominal
- nominal: 600 mm
- Accessory / Separate Part Category
- mounting accessory
- Number Of Units 19"
- 24
- Package Weight(Lbs)
- 3.258 kg
- Warranty (In Months)
- 18
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Carbon Footprint Of The Distribution Phase [A4]0.627159413, 0.6 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.72240935, 0.7 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]kg CO2 eq., 0
Local Publishable Date2025-07-10
Stocking FlagY
Weee ScopeOut
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1912
China Rohs In ScopeNo
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Adjustmentadjustable in depth every 25 mm
Device Compositionfixing elements2 upright
Fixing Modeby fixing element
Mounting Locationon structure of enclosure
Permanent Permissible Load400 kg
Product Or Component Type19" rack
Rack Coveragecomplete
RangePanelSeT
Software Versionv5.9.4
Sustainable PackagingNo
Pep CodeENVPEP1109023EN
Pep Verification Date2023-03-30
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Recyclability Potential In %98
Height Useful1200 mm
Width Realnominal: 800 mm
Enclosure/Cubicle Descriptionfloor-standing enclosure
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code7326908688
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 23.16502622
- Eu Rohs Directive
- Compliant
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2023-03-30
- Psr Version
- PSR-0005-ed2-2016 03 29
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP1109023EN
Packaging Made With Recycled CardboardNo
Reach Free Of SvhcYes
Pep CodeENVPEP1109023EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- 19" rack
ETIM
- ETIM 8
- EC002620
ETIM 9EC002620
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
