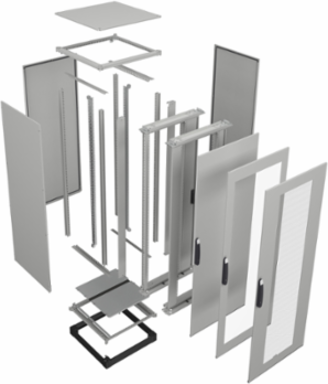

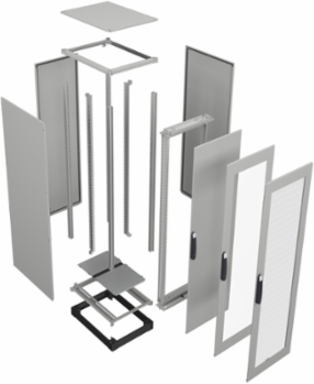

Schneider Electric NSYRCK47 Spacial SF 19 Inch Fixed Rack 2200 mm, 47U, 400 kg Load Capacity

MPN: NSYRCK47
PPN: SCH-NSYRCK47

$140.32

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

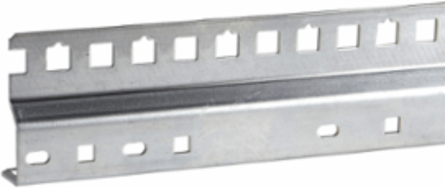

Spacial SF / SM fixed rack 19 inches. Enclosure width is 2200 mm. 47 Units of 19 inch. Electronic application. Mounting accessory. Mounting on structure of enclosure. Adjustable in depth every 25 mm. Steel made, zinc coated surface finish. permissible load is 400 kg. 3 uprights and fixing elements incl.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Spain, France, United States
Width	23.62 in

Height	86.61 in
Depth	45 mm

Important Information Attributes

Persona Type Ids	LC, OM, OM8, PB, SI
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Enclosure Nominal Dimensions	- H: 2200 mm, - H: 2200 mm, - H: 2200 mm, - H: 2200 mm
Carbon Footprint Of The End-of-life Phase [C1 To C4]	17 kg CO2 eq., 16.92610275
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	31 kg CO2 eq., 31.28485295
Local Data Status	Publishable
Return Indicator	N
Stock Policy	2
Scope Perimeter	At least in Europe
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	No
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Device Application	electronic application
Energy Efficiency Optimized	False
Material	steel
Mounting Support	19" fixed support bracket
Product Availability	Non-Stock - Not normally stocked in distribution facility
Quantity Per Set	set of 1
Rack Type	fixed
Returnability	No
Surface Finish	zinc coated
Total Lifecycle Carbon Footprint	51 kg CO2 eq.
Database Version	2022-01
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
Functional-unit Description	Protect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure with dimensions H2000mm x W800mm x D600mm, while protecting against mechanical impacts (IK10-IEC 62262) and the penetration of solid objects and liquids (IP55-IEC 60529) as per the standard IEC 62208.
Functional-unit Unit	unit
Energy Model - Manufacturing [A1-a3]	Electricity Mix; Production mix; Low voltage; FR
Height Nominal	2200 mm
Width Nominal	nominal: 800 mm
Accessory / Separate Part Category	mounting accessory
Number Of Units 19"	47
Package Weight(Lbs)	5.000 kg
Warranty (In Months)	18

Persona Type Names	Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market Segmentation	Commercial, Industrial
Carbon Footprint Of The Distribution Phase [A4]	1.385987653, 1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	1.596484751, 2 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	kg CO2 eq., 0
Local Publishable Date	2025-07-10
Stocking Flag	Y
Weee Scope	Out
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1912
China Rohs In Scope	No
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Adjustment	adjustable in depth every 25 mm
Device Composition	fixing elements2 upright
Fixing Mode	by fixing element
Mounting Location	on structure of enclosure
Permanent Permissible Load	400 kg
Product Or Component Type	19" rack
Rack Coverage	complete
Range	PanelSeT
Software Version	v5.9.4
Sustainable Packaging	No
Pep Code	ENVPEP1109023EN
Pep Verification Date	2023-03-30
Psr Version	PSR-0005-ed2-2016 03 29
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	20
Recyclability Potential In %	98
Height Useful	2200 mm
Width Real	nominal: 600 mm
Enclosure/Cubicle Description	floor-standing enclosure
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	7326908688

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
Reach Free Shvc	Yes
Toxic Heavy Metal Free	Yes
Carbon Footprint	51.1934281
Eu Rohs Directive	Compliant
Packaging Without Single Use Plastic	No
Reach Regulation	Free of Substances of Very High Concern above the threshold
Pep Verification Date	2023-03-30
Psr Version	PSR-0005-ed2-2016 03 29

Take Back	No
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Environmental Disclosure	ENVPEP1109023EN
Packaging Made With Recycled Cardboard	No
Reach Free Of Svhc	Yes
Pep Code	ENVPEP1109023EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
