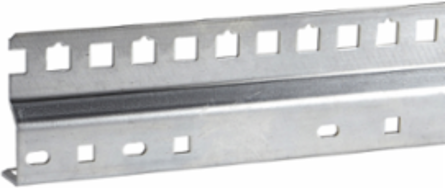

Schneider Electric NSYRCK29 Spacial SF/SM 19 Inch Fixed Rack, 1400 mm Height, 29 Units, 400 kg Load
- MPN: NSYRCK29
- PPN: SCH-NSYRCK29
CAD
$100.86
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Spacial SF / SM fixed rack 19 inches. Enclosure width is 1400 mm. 29 Units of 19 inch. Electronic application. Mounting accessory. Mounting on structure of enclosure. Adjustable in depth every 25 mm. Steel made, zinc coated surface finish. permissible load is 400 kg. 2 uprights and fixing elements incl.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Spain, France
- Width
- 31.5 in
Height55.12 in
Depth120 mm
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- fixing elements, 2 upright
- Carbon Footprint Of The Distribution Phase [A4]
- 0.768453154, 0.8 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.885162101, 0.9 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 0 kg CO2 eq., 0
- Local Publishable Date
- 2025-07-10
- Stocking Flag
- Y
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Device Application
- electronic application
- Fixing Mode
- by fixing element
- Mounting Location
- on structure of enclosure
- Permanent Permissible Load
- 400 kg
- Product Or Component Type
- 19" rack
- Rack Coverage
- complete
- Range
- PanelSeT
- Software Version
- v5.9.4
- Sustainable Packaging
- No
- Pep Code
- ENVPEP1109023EN
- Pep Verification Date
- 2023-03-30
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 20
- Recyclability Potential, In %
- 98
- Height Useful
- 1400 mm
- Width Real
- nominal: 800 mm
- Enclosure/Cubicle Description
- floor-standing enclosure
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Enclosure Nominal Dimensions- H: 1400 mm, - H: 1400 mm, - H: 1400 mm, - H: 1400 mm
Carbon Footprint Of The End-of-life Phase [C1 To C4]9 kg CO2 eq., 9.384583635
Carbon Footprint Of The Manufacturing Phase [A1 To A3]17 kg CO2 eq., 17.34571291
Local Data StatusPublishable
Return IndicatorN
Weee ScopeOut
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1912
China Rohs In ScopeNo
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Adjustmentadjustable in depth every 25 mm
Energy Efficiency OptimizedFalse
Materialsteel
Mounting Support19" fixed support bracket
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Quantity Per Setset of 1
Rack Typefixed
ReturnabilityNo
Surface Finishzinc coated
Total Lifecycle Carbon Footprint28 kg CO2 eq.
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionProtect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure with dimensions H2000mm x W800mm x D600mm, while protecting against mechanical impacts (IK10-IEC 62262) and the penetration of solid objects and liquids (IP55-IEC 60529) as per the standard IEC 62208.
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; FR
Height Nominal1400 mm
Width Nominalnominal: 600 mm
Accessory / Separate Part Categorymounting accessory
Number Of Units 19"29
Package Weight(Lbs)3.500 kg
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 28.3839118
- Eu Rohs Directive
- Compliant
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2023-03-30
- Psr Version
- PSR-0005-ed2-2016 03 29
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP1109023EN
Packaging Made With Recycled CardboardNo
Reach Free Of SvhcYes
Pep CodeENVPEP1109023EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- 19" rack
ETIM
- ETIM 8
- EC002620
ETIM 9EC002620
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
