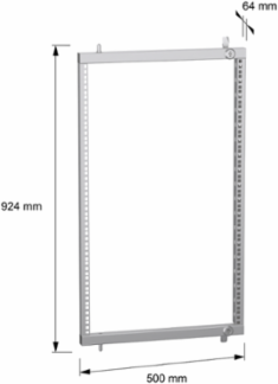

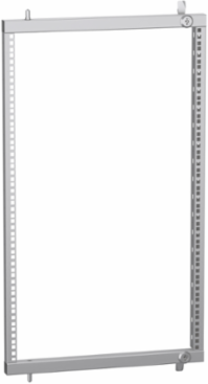

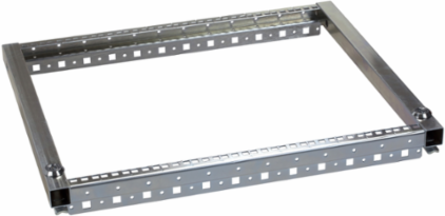

Schneider Electric NSYRSWP18 19 Inch Partial Swing Rack, 868 mm Height, 18 Units, Steel, Zinc Coated
Schneider Electric NSYRSWP18 19 Inch Partial Swing Rack, 868 mm Height, 18 Units, Steel, Zinc Coated
- MPN: NSYRSWP18
- PPN: SCH-NSYRSWP18
- UNSPSC: 39121327
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$558.05/ EA
Description
Spacial SF/SM partial 19 inch swing rack. width 868 mm. Electronic application. Mounting in front of enclosure. 5 mm double bar lock. Adjustable in depth every 25 mm. 2gk per unit max permissible load. Steel, zinc coated surface. 18 units of 19 inch.
Features
- Rack for coupling to enclosures with widths of 600 and 800 mm.
- In enclosures with a width of 800 mm, the rack can be installed centered or off-center.
- Maximum opening: 120°.
- Reversible opening direction: Left/right.
- Locking system, top and bottom, with 5-mm double-bar key.
- The 6 and 9 units racks only with bottom lock.

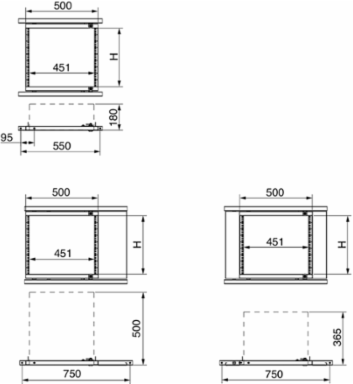

- Maximum equipment installation depth: 180 mm, in enclosures with a width of 600 mm.
- Material: Zinc-coated steel Installation: PanelSet SF: To install at the front at any height of the enclosure
- To install at the front at any height of the enclosure: directly to the framework by rack fixing elements
- For depth adjustment: Install two (for top height) or four (for any height) 65 mm (2 rows) cross-rails
Specifications
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Enclosure Nominal Dimensions
- - H: 868 mm, - H: 868 mm, - H: 868 mm, - H: 868 mm
- Local Publishable Date
- 2025-07-10
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- ROHS EUR Status
- Compliant with Exemptions
- ROHS EUR Full Compliance Status Id
- PRO_ACTIVE_COMPLIANCE
- Green Premium Status For Reporting
- Green Premium product
- Without Single Use Plastic
- No
- Return Indicator
- N
- Function Option
- Standard
- Device Composition
- 1 rack
- Lock Type
- lock 5 mm double bar
- Mounting Location
- front of enclosure
- Package Weight Lbs
- 4.224 kg
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Rack Type
- swing
- Returnability
- No
- Sustainable Packaging
- No
- Medium Desc
- Spacial SF/SM partial 19" swing rack - 868 mm
- Product Kit Identifier
- N
- Adjustment
- adjustable in depth every 25 mm
- Rack Coverage
- partial
- Global Commercial Status
- Commercialised
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Local Data StatusPublishable
Legacy WEEE ScopeOut
EOLI Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
ROHS EUR In ScopeNo
ROHS EUR Full Compliance StatusPro-active compliance (Product out of EU RoHS legal scope)
China ROHS In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Function Option IdSTANDARD
Device Applicationelectronic application
Fixing Modeby fixing element
Materialsteel
Mounting Supportpartial 19" swing rack support
Permanent Permissible Load2 kg per unit
Product Or Component Type19" rack
RangePanelSeT
Surface Finishzinc coated
Accessory Separate Part Category2mounting accessory
Stocking FlagY
Pep CodeENVPEP1109023EN
Enclosure Cubicle Descriptionfloor-standing enclosure
Opening Of The 19 Racks2reversible 120 °
Opening Of The 19 Racks5reversible 120 °
Environment Attributes Main
- Take Back
- No, Nej
- ROHS Exemption Information
- Yes
- China ROHS Regulation
- X
- Environmental Disclosure
- ENVPEP1109023EN
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP1109023EN
EU ROHS DirectiveCompliant By Exemption , Pro-active compliance (Product out of EU RoHS legal scope)
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- 19" rack
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Width
- 23.62 in
Depth868 mm
