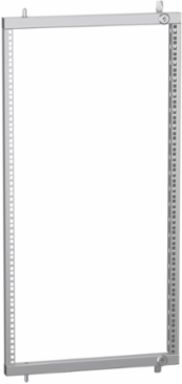

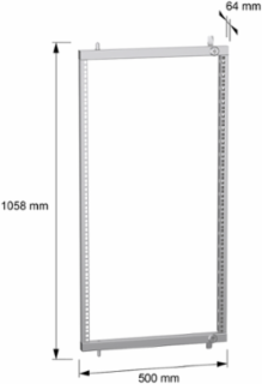

Schneider Electric NSYRSWP21 19 Inch Partial Swing Rack, 1002 mm Height, Steel, 21 Units
- MPN: NSYRSWP21
- PPN: SCH-NSYRSWP21
CAD
$677.88
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Spacial SF/SM partial 19 inch swing rack. width 1002 mm. Electronic application. Mounting in front of enclosure. 5 mm double bar lock. Adjustable in depth every 25 mm. 2gk per unit max permissible load. Steel, zinc coated surface. 21 units of 19 inch.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Spain
- Depth
- 1002 mm
Height39.45 in
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Enclosure Nominal Dimensions
- - H: 1002 mm, - H: 1002 mm, - H: 1002 mm, - H: 1002 mm
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 10 kg CO2 eq., 10.1086447
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 19 kg CO2 eq., 18.6840094
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 7
- Without Single Use Plastic
- No
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Device Application
- electronic application
- Energy Efficiency Optimized
- False
- Lock Type
- lock 5 mm double bar
- Mounting Location
- front of enclosure
- Permanent Permissible Load
- 2 kg per unit
- Product Or Component Type
- 19" rack
- Rack Type
- swing
- Returnability
- No
- Surface Finish
- zinc coated
- Total Lifecycle Carbon Footprint
- 31 kg CO2 eq.
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- Protect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure with dimensions H2000mm x W800mm x D600mm, while protecting against mechanical impacts (IK10-IEC 62262) and the penetration of solid objects and liquids (IP55-IEC 60529) as per the standard IEC 62208.
- Functional-unit Unit
- unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Production mix; Low voltage; FR
- Height Nominal
- 1002 mm
- Width Nominal
- 600 mm
- Enclosure/Cubicle Description
- floor-standing enclosure
- Number Of Units 19"
- 21
- Package Weight(Lbs)
- 4.776 kg
- Warranty (In Months)
- 18
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Carbon Footprint Of The Distribution Phase [A4]0.827742626, 0.8 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.95345617, 1 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]0 kg CO2 eq., 0
Local Publishable Date2026-04-15
Stocking FlagY
Weee ScopeOut
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1916
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Adjustmentadjustable in depth every 25 mm
Device Composition1 rack
Fixing Modeby fixing element
Materialsteel
Mounting Supportpartial 19" swing rack support
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Rack Coveragepartial
RangePanelSeT
Software Versionv5.9.4
Sustainable PackagingNo
Pep CodeENVPEP1109023EN
Pep Verification Date2023-03-30
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y20
Recyclability Potential, In %98
Height Useful1002 mm
Accessory / Separate Part Categorymounting accessory
Opening Of The 19" Racksreversible 120 °
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 30.5738529
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP1109023EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP1109023EN
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2023-03-30
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- 19" rack
ETIM
- ETIM 8
- EC002620
ETIM 9EC002620
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
