Blackburn STB090A1220 Standard Flexible Braid Connector, 8.66 Inch Long, Tin-Plated Copper
- MPN: STB090A1220
- UPC: 783786538577
- PPN: T-B-STB090A1220
- UNSPSC: 39121465
CAD
$278.72
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

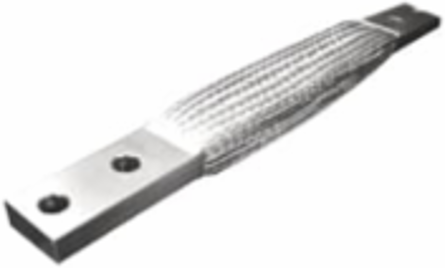

Tinned Copper, Standard Flexible Braid Connector, STB Series, 2-Hole Pads with NEMA Standard 9/16 inch (14.3 mm) Holes and 1-3/4 inch (44.4 mm) Spacing Center to Center, 8.66 inch (220 mm) long, 1-1/2 inch (38.1 mm) wide, 11/32 inch (8.7 mm) thick. Pad 3-1/2 inch x 1-1/2 inch. 3 Braids in Assembly. 30 AWG Individual Strand.
Specifications
Additional Information
- Application
- Suitable wherever it is necessary to take up expansion, severe vibration and/or misalignment when connecting Transformers, Switchgear, Generators or Busbars.
- Cable Length
- 220 mm
- Conductor Shape
- Flat
- Material of Conductor
- Tin-Plated Copper
- Product Type
- Standard Flexible Braid Connector - 2-Hole
- Standards
- IEEE/ANSI C37.34
Brand / LabelBoreal
Conductor CategoryFlexible
Effective Date20120912
Product NameFLEXIBLE BRAID
Special FunctionsTin Plated for High Conductivity and Corrosion Resistance. 2 Hole NEMA Pads
Ordering
- Country of Origin
- United States (US)
Selling Unit of Measureeach
Classifications
- WEEE Category
- Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)4695 >> Flexible braid
