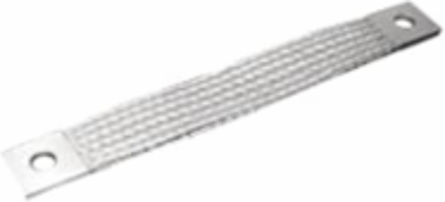

Blackburn EXA035A3500 Extra Flexible Tinned Copper Braid Connector, 7/16 Inch Hole, 500 mm Long
- MPN: EXA035A3500
- UPC: 783786469260
- PPN: T-B-EXA035A3500
- UNSPSC: 39121465
CAD
$191.92
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Tinned Copper, Extra Flexible Braid Connector, EXA Series, 1-Hole Pads with NEMA Standard 7/16 inch (111.1 mm) Hole, 19.685 inch (500 mm) long, 1-1/2 inch (38 mm) wide, 3/16 inch (4.7 mm) thick. Pad 1.5 inch x 1.5 inch. 1 Braid in Assembly. 36 AWG Individual Strand.
Specifications
Classifications
| WEEE Category | Product Not in WEEE Scope |
|---|
| IDEA Granular Category Code (IGCC) | 4695 >> Flexible braid |
|---|
Additional Information
| Application | Suitable wherever it is necessary to take up expansion, severe vibration and/or misalignment when connecting Transformers, Switchgear, Generators or Busbars. Extra-Flexible Links for Heavy-Duty Applications. |
|---|---|
| Cable Length | 500 mm |
| Conductor Shape | Flat |
| Material of Conductor | Tin-Plated Copper |
| Product Type | Extra Flexible Braid Connector - 1-Hole |
| Standards | IEEE / ANSI C37, 34 |
| Brand / Label | Boreal |
|---|---|
| Conductor Category | Flexible |
| Effective Date | 20120531 |
| Product Name | COPPER FLEX BRAID |
| Special Functions | 1 Hole Nema Pads |
Ordering
| Country of Origin | United States (US) |
|---|
| Selling Unit of Measure | each |
|---|
