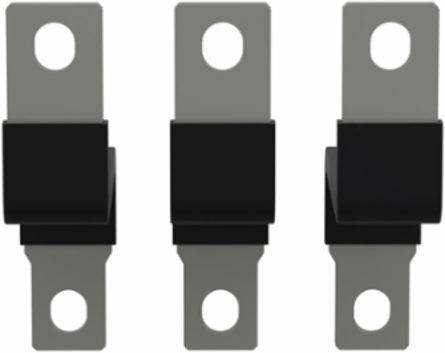

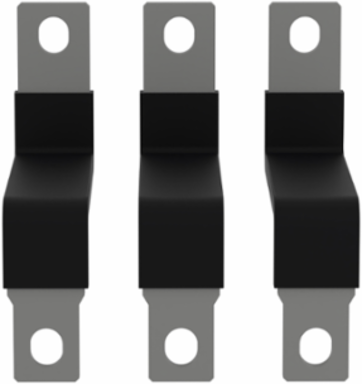

Schneider Electric LAD91503111 Flexible extension, Tesys Deca Advanced, for 3P 3P D115-150A6 to MCCB
- MPN: LAD91503111
- PPN: SCH-LAD91503111
CAD
$132.57
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

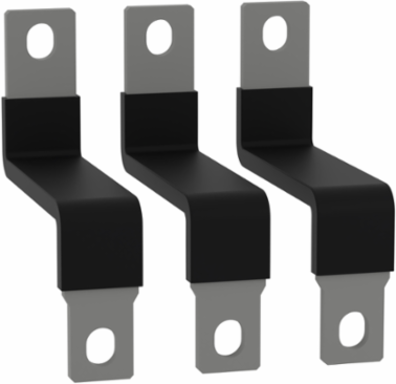

These accessories are flexible link bars for TeSys Deca Advanced contactors 3 poles 115A to 150A to align with MCCB. These busbars are designed to be attached on the contactor connectors to assemble a motor starter solution faster and easier. They operate within a temperature range of -40°C to 70°C and can be used at altitudes of up to 3000 meters without derating. Unique QR code provides quick access to complete product data.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Certificate Agency
- EN/IEC 60947-4-1, UL 60947-4-1, CSA C22.2 No 60947-4-1, GB/T 14048.4
- Local Publishable Date
- 2026-07-01
- Stocking Flag
- Y
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Product Category
- 5
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Device Short Name
- LAD9
- Number Of Poles
- 3P
- Product Or Component Type
- terminal extension
- Range
- TeSys
- Returnability
- No
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Package Weight(Lbs)
- 550 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
TraceabilityNo
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2538
China Rohs In ScopeNo
Without Single Use PlasticNo
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Energy Efficiency OptimizedFalse
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Quantity Per Set3
Range Of ProductTeSys Deca
Sustainable PackagingYes
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8544493040
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Ambient Air Temperature For Storage
- -60-80 °C, -60-80 °C
- Take Back
- No
- Mercury Free
- Yes
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Ambient Air Temperature For Operation-25-60 °C, -25-60 °C
Product CompatibilityLC1D115, LC1D150
Recycled Metal Content At Cr Level0 %
Eu Rohs DirectiveCompliant By Exemption
Packaging Without Single Use PlasticNo
General Attributes
- Product Or Component Type
- terminal extension
Range Of ProductTeSys Deca
ETIM
- ETIM 8
- EC002498
ETIM 9EC002498
