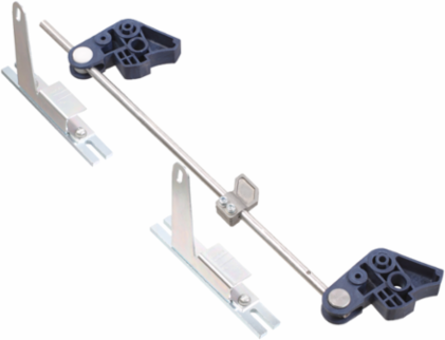

Schneider Electric LA9FH4H TeSys F Mechanical Interlock for 2 Vertical Contactors, 1.06 kg Weight
- MPN: LA9FH4H
- PPN: SCH-LA9FH4H
CAD
$730.08
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The LA9FH4H TeSys F Mechanical Interlock by Schneider Electric is an essential component for enhancing the safety and efficiency of automation and control systems. Designed to securely connect two vertical contactors, this interlock facilitates reliable operation while preventing simultaneous engagement, thereby protecting your equipment from potential overloads and failures. With its robust construction and compact design, it integrates seamlessly into NEMA applications, ensuring dependable performance in demanding environments. This mechanical interlock is a critical addition for those seeking to optimize their contactor installations in industrial settings.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil, Czechia, France |
|---|
Important Information Attributes
| Persona Type Ids | EU, OM, OM8, PB |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Interlocked Device | bottom CR1F265 3P or 4Ptop LC1F265...LC1F330 3P or 4P, top CR1F265 3P or 4P, bottom LC1F265...LC1F330 3P or 4P |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 2 kg CO2 eq., 1.8401923257882407 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 6 kg CO2 eq., 5.850711565878093 |
| Local Data Status | Publishable |
| Return Indicator | N |
| Stock Policy | 2 |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI1505009EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 2542 |
| China Rohs In Scope | No |
| Without Single Use Plastic | No |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Device Short Name | LA9F |
| Interlocking Type | mechanical |
| Mounting Support | asymmetrical AM1-EC rail |
| Product Or Component Type | mechanical interlock |
| Range Of Product | TeSys F |
| Software Version | v6.1 |
| Total Lifecycle Carbon Footprint | 77 kg CO2 eq. |
| Database Version | 2023-02 |
| Pcr Version | PCR-4-ed4-EN-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | Establish and cut off the supply of a downstream installation from an electrical and/or mechanical control characterised by the composition of the poles or type of contacts X, a rated voltage of Ue, a rated current Ie, a control circuit voltage Uc, with Np poles, and if applicable the specific specifications, in the Household/Commercial or Industrial application areas, according to the appropriate use scenario, and during the reference service life of the product of 20 years |
| Functional-unit Unit | unit |
| Energy Consumption On Product Lifetime In Kwh | 78.84 |
| Energy Model - Installation [A5] | Electricity Mix; Low voltage; 2018; China, CN |
| Energy Model - End Of Life [C1-c4] | Electricity Mix; Low voltage; 2018; China, CN |
| Accessory / Separate Part Category | interlocking accessory |
| Package Weight(Lbs) | 1.127 kg |
| Warranty (In Months) | 18 |
| Persona Type Names | End User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Carbon Footprint Of The Distribution Phase [A4] | 0.3192206465286522, 0.3 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.00256522166014834, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 69 kg CO2 eq., 68.82266544572599 |
| Local Publishable Date | 2026-04-22 |
| Stocking Flag | Y |
| Weee Scope | Out |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Compatibility Code | interlock vertical |
| Energy Efficiency Optimized | False |
| Mounting Position | 2 vertical |
| Product Availability | Stock - Normally stocked in distribution facility |
| Range | TeSys |
| Returnability | No |
| Sustainable Packaging | Yes |
| Pep Code | ENVPEP1505009EN |
| Pep Verification Date | 2025-07-19 |
| Psr Version | PSR-0005-ed3-EN-2023 06 06 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Energy Model - Manufacturing [A1-a3] | China, CN |
| Energy Model - Use [B6] | Electricity Mix; Low voltage; 2018; China, CN |
| Recyclability Potential In % | 95 |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8538908180 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information. |
|---|---|
| Take Back | No |
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI1505009EN |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Without Single Use Plastic | No |
| Pep Code | ENVPEP1505009EN |
| Pcr Version | PCR-4-ed4-EN-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Product Compatibility | LC1F, CR1F |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Carbon Footprint | 76.83535520558112 |
| Environmental Disclosure | ENVPEP1505009EN |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2025-07-19 |
| Psr Version | PSR-0005-ed3-EN-2023 06 06 |
General Attributes
| Product Or Component Type | mechanical interlock |
|---|
| Range Of Product | TeSys F |
|---|
ETIM
| ETIM 8 | EC002498 |
|---|
| ETIM 9 | EC002498 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
