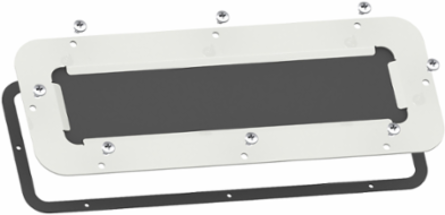

Schneider Electric NSYTLCME PanelSeT S3D Flexicable Gland Plate 178 x 63 mm, Membrane Type
Schneider Electric NSYTLCME PanelSeT S3D Flexicable Gland Plate 178 x 63 mm, Membrane Type
- MPN: NSYTLCME
- PPN: SCH-NSYTLCME
- UNSPSC: 39121324
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$118.91/ EA
Description
Flexicable gland plate for Spacial S3D/SF with membrane pearcable. W is 245 x D is 130 mm. Cable management accessory. Mounting on bottom of enclosure. Pierceable by screwdriver. Number of cut-out is Undrilled. Steel plate, HCE (heat curable elastomer) for membrane. Grey RAL 7035. Membrane, 1 plate incl.
Features
- Installation options: Replaces cable gland plate (S3D) or directly on enclosure.
- Cable diameter: Up to 26 mm.
- Ingress protection rating: IP55 according to IEC 60529
- Fixing: By 4, 6, 8, 10 or 12 screws, according to the model Other characteristics:
- Exists in 5 sizes matching 46 sizes (132 models) of PanelSet S3D steel wall-mounted enclosures
- Fire resistant 650 ºC following IEC 60695-2-11
- Tested on short-circuit effect 250 A, 25 kA following IEC 61439-1
Specifications
Physical Attributes
- Color
- plate Gray RAL 7035)
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- 1 plate, membrane
- Local Data Status
- Publishable
- Legacy WEEE Scope
- Out
- EOLI Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- ROHS EUR In Scope
- No
- ROHS EUR Full Compliance Status
- Pro-active compliance (Product out of EU RoHS legal scope)
- China ROHS In Scope
- No
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Function Option Id
- STANDARD
- Cable Entry
- without
- Device Application
- multi-purpose
- Mounting Location
- enclosure bottom
- Package Weight Lbs
- 574.000 g
- Product Or Component Type
- flexicable gland plate
- Range
- PanelSeT
- Surface Finish
- epoxy-polyester powder
- Thickness
- 1.5 mm
- Accessory Separate Part Category2
- cable management accessory
- Stocking Flag
- Y
- Pep Code
- ENVPEP1001004EN
- Cable Outer Diameter
- 10-26 mm
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Materialplate steel, membrane HCE (heat curable elastomer)
Local Publishable Date2025-07-10
Scope PerimeterAt least in Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
ROHS EUR StatusCompliant
ROHS EUR Full Compliance Status IdPRO_ACTIVE_COMPLIANCE
Green Premium Status For ReportingGreen Premium product
Without Single Use PlasticNo
Return IndicatorN
Function OptionStandard
Cut Out Dimensions178 x 63 mm
Energy Efficiency OptimizedFalse
Number Of Cut Outundrilled
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Quantity Per Setset of 1
ReturnabilityNo
Sustainable PackagingNo
Type Of Gland Platemembrane
Medium DescPanelSeT S3D flexicable gland plate with membrane pearcable 178 x 63 mm
Product Kit IdentifierN
Cable Gland Typepierceable by screwdriver
Global Commercial StatusCommercialised
Environment Attributes Main
- Take Back
- No, Nej
- EU ROHS Directive
- Compliant , Pro-active compliance (Product out of EU RoHS legal scope)
- Reach Free SHVC
- Yes
- Toxic Heavy Metal Free
- Yes
- Environmental Disclosure
- ENVPEP1001004EN
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
China ROHS RegulationProduct out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
ROHS Exemption InformationYes
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Packaging Made With Recycled CardboardNo
Reach Free Of SVHCYes
Pep CodeENVPEP1001004EN
General Attributes
- Product Or Component Type
- flexicable gland plate
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Width
- 10.24 in
Depth130 mm
