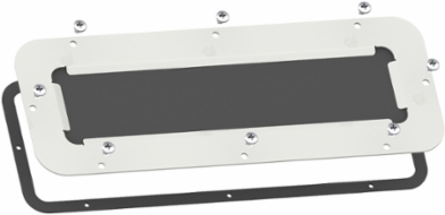

Schneider Electric NSYTLEME Flexicable Gland Plate, Membrane Type, 378 x 63 mm, Mercury Free
- MPN: NSYTLEME
- PPN: SCH-NSYTLEME
CAD
$201.72
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Flexicable gland plate for Spacial S3D/CRNG with membrane pearcable. W is 445 x D is 130 mm. Cable management accessory. Mounting on bottom of enclosure. Pierceable by screwdriver. Number of cut-out is Undrilled. Steel plate, HCE (heat curable elastomer) for membrane. Grey RAL 7035. Membrane, 1 plate incl.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Spain, Slovakia
- Width
- 18.11 in
Height1.18 in
Depth130 mm
Physical Attributes
- Color
- plate Gray RAL 7035)
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- 1 plate, membrane
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1916
- China Rohs In Scope
- No
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Cable Entry
- without
- Cable Outer Diameter
- 10-26 mm
- Energy Efficiency Optimized
- False
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Quantity Per Set
- set of 1
- Returnability
- No
- Sustainable Packaging
- No
- Type Of Gland Plate
- membrane
- Height Useful
- 30 mm
- Width Real
- real: 460 mm
- Cut-out Dimensions
- 378 x 63 mm
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Materialplate steel, membrane HCE (heat curable elastomer)
Local Publishable Date2024-07-19
Stocking FlagY
Weee ScopeOut
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Cable Gland Typepierceable by screwdriver
Device Applicationmulti-purpose
Mounting Locationenclosure bottom
Product Or Component Typeflexicable gland plate
RangePanelSeT
Surface Finishepoxy-polyester powder
Thickness1.5 mm
Height Nominal30 mm
Width Nominal445 mm
Accessory / Separate Part Categorycable management accessory
Number Of Cut-outundrilled
Package Weight(Lbs)964.000 g
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Eu Rohs Directive
- Compliant
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Packaging Made With Recycled CardboardNo
Reach Free Of SvhcYes
General Attributes
- Product Or Component Type
- flexicable gland plate
ETIM
- ETIM 8
- EC000211
ETIM 9EC000211
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
