Schneider Electric NSYTLFME PanelSeT S3D flexicable gland plate with membrane pearcable 478 x 63 mm

PanelSeT S3D flexicable gland plate with membrane pearcable 478 x 63 mm
PanelSeT S3D flexicable gland plate with membrane pearcable 478 x 63 mm
PanelSeT S3D flexicable gland plate with membrane pearcable 478 x 63 mm
PanelSeT S3D flexicable gland plate with membrane pearcable 478 x 63 mm
  • MPN: NSYTLFME
  • PPN: SCH-NSYTLFME

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$233.68/ EA

Description

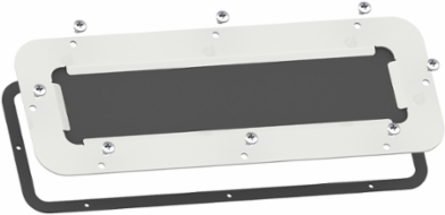

Flexicable gland plate for Spacial S3D with membrane pearcable. Suitable for cable gland plates which dimensions are 545 x 130 mm. This innovative accessory allows simple and fast cable entry Cable entrances made by a screwdriver in few seconds, for cables up to 26 mm diameter. Ingress protection IP55. It can replace the standard cable gland plate or directly mounted on the enclosure.

Specifications

Physical Attributes

Color
plate Gray RAL 7035)

Important Information Attributes

Persona Type Ids
LC, OM, OM8, PB, SI
Market Segmentation Id
COMMERCIAL, INDUSTRIAL
Device Composition
1 plate, membrane
Local Data Status
Publishable
Return Indicator
N
Stock Policy
2
Scope Perimeter
At least in Europe
Reach Full Compliance Status
Free of Substances of Very High Concern above the threshold
Reach Compliance Directive
Free of Substances of Very High Concern above the threshold
Rohs Eur Status
Compliant
Rohs Eur Full Compliance Status
Compliant
China Rohs Label
1
Without Single Use Plastic
No
Tier Id
2
Function Option Id
STANDARD
Product Kit Identifier
N
Cable Gland Type
pierceable by screwdriver
Cut Out Dimensions
478 x 63 mm
Energy Efficiency Optimized
False
Number Of Cut Out
undrilled
Product Or Component Type
flexicable gland plate
Range
PanelSeT
Surface Finish
epoxy-polyester powder
Thickness
1.5 mm
Accessory Separate Part Category
cable management accessory
Warranty In Months
18
Offer Owner Code
190789
Height Nominal
30 mm
Width Nominal
545 mm
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Materialplate steel, membrane HCE (heat curable elastomer)
Local Publishable Date2026-04-15
Stocking FlagY
Weee ScopeOut
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1916
China Rohs In ScopeNo
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Cable Entrywithout
Cable Outer Diameter10-26 mm
Device Applicationmulti-purpose
Mounting Locationenclosure bottom
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Quantity Per Setset of 1
ReturnabilityNo
Sustainable PackagingNo
Type Of Gland Platemembrane
Silicone FreeYes
Pep CodeENVPEP1001004EN
Pn1
Height Useful30 mm
Width Realreal: 560 mm

Environment Attributes Main

China Rohs Regulation
Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
Reach Free Shvc
Yes
Toxic Heavy Metal Free
Yes
Silicon Free
Yes
Eu Rohs Directive
Compliant
Packaging Without Single Use Plastic
No
Reach Regulation
Free of Substances of Very High Concern above the threshold
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP1001004EN
Packaging Made With Recycled CardboardNo
Reach Free Of SvhcYes
Pep CodeENVPEP1001004EN

General Attributes

Product Or Component Type
flexicable gland plate

ETIM

ETIM 8
EC000211
ETIM 9EC000211

Contractual Warranty Attributes

Warranty Period
18 months
Warranty18 months

Specifications

Country of Origin
Spain, Slovakia
Width
22.05 in
Height1.18 in
Depth130 mm
