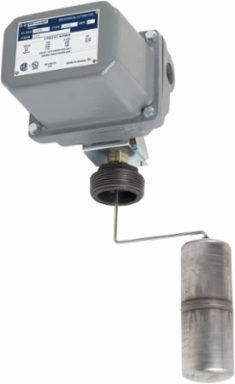

Telemecanique Sensors 9038CW32LZ20 FLOAT SWITCH 575 VAC 1 hp TYPE C +OPTIONS
- MPN: 9038CW32LZ20
- UPC: 785901456964
- PPN: TES-9038CW32LZ20
- UNSPSC: 39122219
CAD
$1499.37
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
FLOAT SWITCH 575 VAC 1 hp TYPE C +OPTIONS
Documentation & Downloads
Specifications
Key Specifications
- Enclosure Type
- dust and damp proof weatherproof enclosure indoor/outdoor
- Device Short Name
- C
Product Specific Applicationcondensation pump
Switch Applicationstandard
Complementary
- Float Movement
- 6.5...13 in
- Maximum Horse Power Rating
- 3-3 hp 115 V AC, 3 phase || 2-2 hp 115 V AC, 1 phase || 1-1 hp 460/575 V AC, 3 phase || 5-5 hp 230 V AC, 1 phase || 3-3 hp 230 V AC, 3 phase
- Electrical Connection
- screw clamp terminal
- Float Position
- left
- Number Of Poles
- 2
Mounting Supportflange
Materialstainless steel float/rod || nitrile (Buna-N) seal ring
Switch FunctionDPST
Permissible Voltage575 V AC
Offer Sustainability
- Circularity Profile
- ENVEOLI111210EN
- Eu Rohs Directive
- Not applicable, out of EU RoHS legal scope
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Environmental DisclosureENVPEP111211EN
Reach RegulationReference contains Substances of Very High Concern above the threshold
Environment
- Nema Degree Of Protection
- NEMA 4
