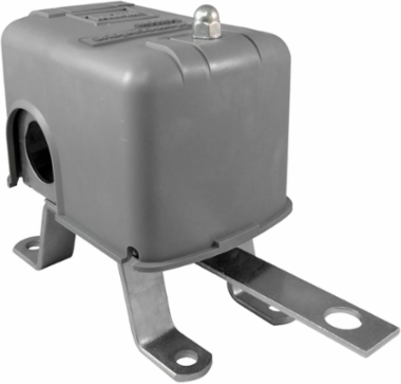

Telemecanique Sensors 9036DG2CR Float switch, Square D Pumptrol, open tank, NEMA 1, pedestal mounted, 2 NO DPST DB contacts
- MPN: 9036DG2CR
- UPC: 785901716563
- PPN: TES-9036DG2CR
- UNSPSC: 39122219
CAD
$114.50
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Float switch, Square D Pumptrol, open tank, NEMA 1, pedestal mounted, 2 NO DPST DB contacts
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Square D Pumptrol
- Quantity Per Set
- set of 1
- Product Or Component Type
- float switch
- Device Application
- open tank general purpose
Product Specific Applicationliquid level control
Electrical Circuit Typepower circuit
Type Of Packingindividual
Device Short Name9036D
Complementary
- Cable Entry Number
- 3 knock-outs for 1/2" conduit UL 508
- Contact Operation
- contacts open on liquid rise
- Terminal Block Type
- 4 terminals
- [Ui] Rated Insulation Voltage
- 575 V UL 508
- Controlled Fluid
- fresh water specific gravity of 0.85 in or higher || sea water specific gravity of 0.85 in or higher || hydraulic oil specific gravity of 0.85 in or higher || corrosive fluid specific gravity of 0.85 in or higher
- Force Up To Trip
- 9 ozf
- Force Down To Trip
- 8 ozf
- Factory Modification
- compensating spring
- Operating Position
- vertical position only
- Maximum Operating Rate
- 60 cyc/mn
- Contacts Type And Composition
- 2 NO, snap action, DPST-DB, Form XX
- Float Position
- any
- Kit Composition
- float switch || rod and float are to be choosen in accessories
Electrical Connectionscrew-clamp terminals 10 AWG
Product Destinationfor open tank or sump
Terminals Description Iso N°1line-load-load-line
Short-Circuit Protection20 A cartridge fuse gG
Device Mountingpedestal
Mechanical Durability300 cycles
Float Rod Anglevertical
Float Movementvariable adjustable
Enclosure Materialpolypropylene or equivalent
Local Signallingwithout
Motor Power Kw1.5 kW 2 hp)115 V AC, 1 phase || 2.2 kW 3 hp)115 V AC, 3 phase || 2.2 kW 3 hp)230 V AC, 1 phase || 3.7 kW 5 hp)230 V AC, 3 phase || 0.75 kW 1 hp)460 V AC, 3 phase || 0.75 kW 1 hp)475 V AC, 3 phase || 0.18 kW 0.25 hp)32 V DC || 0.37 kW 0.5 hp)115 V DC || 0.37 kW 0.5 hp)230 V DC
Net Weight1.2 lb(US)
Electrical Durability100 cycles 60 cyc/mn
Environment
- Product Certifications
- CSA file LR25490 || UL listed file E12158
- Ambient Air Temperature For Storage
- -22-220 °F
- Nema Degree Of Protection
- NEMA 1 UL 50
Ambient Air Temperature For Operation-22-220 °F
StandardsCE || UL 508
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Circularity Profile
- ENVEOLI111210EN
- Eu Rohs Directive
- Not applicable, out of EU RoHS legal scope
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Environmental DisclosureENVPEP111211EN
Reach RegulationReference contains Substances of Very High Concern above the threshold
