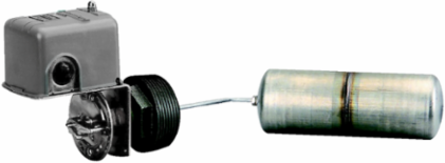

Telemecanique Sensors 9037HG30Z20 Float switch, Square D Pumptrol, closed tank, NEMA 1, screw in bushing, 2 NC DPST DB contacts
Telemecanique Sensors 9037HG30Z20 Float switch, Square D Pumptrol, closed tank, NEMA 1, screw in bushing, 2 NC DPST DB contacts
- MPN: 9037HG30Z20
- UPC: 785901302810
- PPN: TES-9037HG30Z20
- UNSPSC: 39122219
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$244.33/ EA
Description
This product is part of the Nema Pressure Switches range, an offer of float switches. This float switch has 2 normally closed, snap action, DPST-DB (double pole single throw, double break) form YY contacts. The closed tank float switch supports screw-in bush mounting method and 90° (offset) float rod angle for operating in left position. It is furnished with screw clamp terminals for electrical connection and 3 knockouts for 1/2inch conduit. Offers electrical durability of 100 cycles and mechanical durability of 300 cycles. The enclosure is made of polypropylene or equivalent material. It weighs 4.33lb. It is suitable for pressure controlling or monitoring of water pumps, compressors, agricultural/irrigation water systems, moulding presses, injection moulders, grinding machines, machining centres, complex and special machines. It is a NEMA 1 rated product. This product is certified by CE, CSA and UL. Meets UL 508 standards. Float switch is attached to the tank by means of a 2-1/2inch bushing. An external pointer indicates the float position within the tank when the unit is mounted. Switch comes complete with stainless steel float and rod.
Specifications
Environment
- Product Certifications
- UL listed file E12158 || CSA file LR25490
- Standards
- UL 508 || CE
- Nema Degree Of Protection
- NEMA 1 UL 50
Ambient Air Temperature For Operation-22-220 °F
Ambient Air Temperature For Storage-22-220 °F
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP111211EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Circularity Profile
- ENVEOLI111210EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
California Proposition 65WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Product Destination
- for closed tank
- Terminals Description Iso N°1
- line-load-load-line
- Device Mounting
- screw-in bushing
- Factory Modification
- without
- Maximum Operating Rate
- 60 cyc/mn
- Materials In Contact With Fluid
- viton || cast iron || yellow brass || stainless steel 316 || stainlesss steel 304
- Net Weight
- 4.33 lb(US)
- Cable Entry Number
- 3 knock-outs for 1/2" conduit UL 508
- Contact Operation
- contacts close on liquid rise
- Controlled Fluid
- fresh water specific gravity of 0.85 in or higher 0-250 °F || sea water specific gravity of 0.85 in or higher 0-250 °F || hydraulic oil specific gravity of 0.85 in or higher 0-250 °F || corrosive fluid specific gravity of 0.85 in or higher 0-250 °F
- Operating Position
- vertical position only
- Local Signalling
- with external pointer
- Kit Composition
- rod || float switch || float
Terminal Block Type4 terminals
Short-Circuit Protection20 A cartridge fuse gG
Float Rod Angle90° (offset)
Float Movement4.25...8.25 in adjustable
Contacts Type And Composition2 NC, snap action, DPST-DB, Form YY
Float Positionleft
Electrical Durability100 cycles 60 cyc/mn
Electrical Connectionscrew-clamp terminals 10 AWG
[Ui] Rated Insulation Voltage575 V UL 508
Mechanical Durability300 cycles
Enclosure Materialpolypropylene or equivalent
Motor Power Kw1.5 kW 2 hp)115 V AC, 1 phase || 2.2 kW 3 hp)115 V AC, 3 phase || 2.2 kW 3 hp)230 V AC, 1 phase || 3.7 kW 5 hp)230 V AC, 3 phase || 0.75 kW 1 hp)460 V AC, 3 phase || 0.75 kW 1 hp)475 V AC, 3 phase || 0.18 kW 0.25 hp)32 V DC || 0.37 kW 0.5 hp)115 V DC || 0.37 kW 0.5 hp)230 V DC
Specifications
- Range Of Product
- Square D Pumptrol
- Type Of Packing
- individual
- Quantity Per Set
- set of 1
- Device Application
- closed tank
Product Or Component Typefloat switch
Product Specific Applicationliquid level control
Electrical Circuit Typepower circuit
Device Short Name9037H
