Float kit, 9049, switch accessory brass rod
Telemecanique Sensors

Telemecanique Sensors 9049A6 Float kit, 9049, switch accessory brass rod

  • MPN: 9049A6
  • UPC: 785901597049
  • PPN: TES-9049A6
  • UNSPSC: 39122219

CAD

$305.93

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

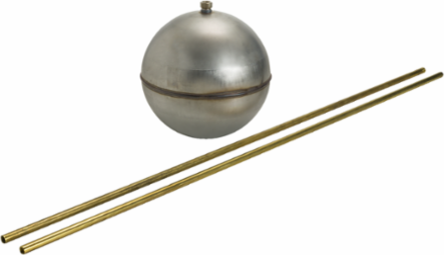

This product is part of the Class 9998 & 9999 Control Accessories range, an offer of float kits. This float kit is an accessory kit for float switches. The rod is made of brass. It weighs 5.77lb. This kit is suitable for use with 9038A, 9036D and 9036G float switches. Kit includes 1x float, 2x rod (5ft) and 2x stop. The tapped-at-top float is for applications requiring short lengths of tubing and small liquid level changes. Adequate space must be available to allow for ceiling clearance when the level changes.

Documentation & Downloads

Specifications

Key Specifications

Range Of Product
9049
Product Or Component Typefloat kit

Complementary

Type Of Float
float tapped at top stainless steel 304
Kit Composition
1 float || 2 stop || 2 rod
Condition Of Use
maximum recommended tubing length: 12.5 ft
Rod Length
5 ft brass
Net Buoyancy60 ozf in water
Product Weight3 oz total weight of stops || 18.5 oz weight of 5 ft rod || 3.7 oz weight of extra rod (per ft) || 5.77 lb(US) total weight
Product Compatibility9038A || 9036D || 9036G

Offer Sustainability

Circularity Profile
ENVEOLI111210EN
Mercury Free
Yes
Sustainable Offer Status
Green Premium product
Reach Regulation
Reference contains Substances of Very High Concern above the threshold
Rohs Exemption InformationYes
Environmental DisclosureENVPEP111211EN
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)

Contractual warranty

Warranty
18 months
