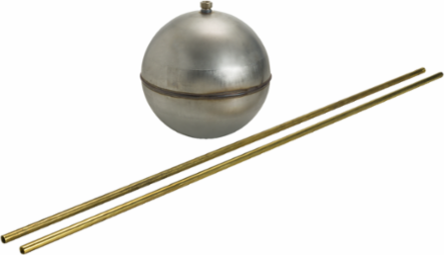

Telemecanique Sensors 9049A6C Float kit, 9049, switch accessory, brass rod
- MPN: 9049A6C
- UPC: 785901597063
- PPN: TES-9049A6C
- UNSPSC: 39122219
CAD
$357.50
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This product is part of the Class 9998 & 9999 Control Accessories range, an offer of float kits. This float kit is an accessory kit for float switches. The rod is made of brass. It weighs 6.07lb. This kit is suitable for use with 9036G, 9038A and 9036D float switches. Kit includes 1x float, 2x rod (5ft) and 4x stop. The center-hole float is used in applications requiring long lengths of tubing and large liquid level changes. A compensating spring, used for longer lengths of tubing, supports the weight of the tubing and stops. The rod is made of brass. It weighs 6.07lb. This kit is suitable for use with 9036G, 9038A and 9036D float switches. Kit includes 1x float, 2x rod (5ft) and 4x stop. The centre-hole float is used in applications requiring long lengths of tubing and large liquid level changes. A compensating spring, used for longer lengths of tubing, supports the weight of the tubing and stops.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- 9049
Product Or Component Typefloat kit
Complementary
- Type Of Float
- center hole float stainless steel 304
- Kit Composition
- 1 float || 2 rod || 4 stop
- Condition Of Use
- maximum recommended tubing length: 30 ft
- Rod Length
- 5 ft brass
Net Buoyancy70 ozf in water
Product Weight18.5 oz weight of 5 ft rod || 3.7 oz weight of extra rod (per ft) || 6 oz total weight of stops || 6.07 lb(US) total weight
Product Compatibility9036G || 9038A || 9036D
Offer Sustainability
- Circularity Profile
- ENVEOLI111210EN
- Mercury Free
- Yes
- Sustainable Offer Status
- Green Premium product
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Rohs Exemption InformationYes
Environmental DisclosureENVPEP111211EN
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
California Proposition 65WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Contractual warranty
- Warranty
- 18 months
