Telemecanique Sensors 9049A6S Float kit, 9049, switch accessory, stainless steel 304 rod
Telemecanique Sensors 9049A6S Float kit, 9049, switch accessory, stainless steel 304 rod
- MPN: 9049A6S
- UPC: 785901597360
- PPN: TES-9049A6S
- UNSPSC: 39122219
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$604.97/ EA
Description

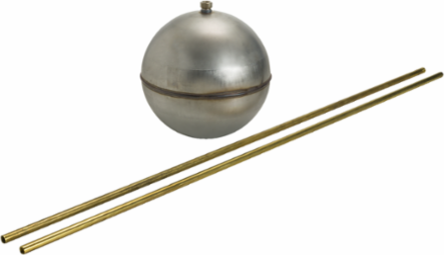

This product is part of the Class 9998 & 9999 Control Accessories range, an offer of float kits. This float kit is an accessory kit for float switches. The rod is made of 304 stainless steel. It weighs 5.6lb. This kit is suitable for use with 9036G, 9038A and 9036D float switches. Kit includes 1x float, 2x rod (5ft) and 2x stop. The tapped-at-top float is for applications requiring short lengths of tubing and small liquid level changes. Adequate space must be available to allow for ceiling clearance when the level changes. The rod is made of 304 stainless steel. It weighs 5.6lb. This kit is suitable for use with 9036G, 9038A and 9036D float switches. Kit includes 1x float, 2x rod (5ft) and 2x stop. The tapped-at-top float is for applications requiring short lengths of tubing and small liquid level changes. Adequate space must be available to allow for ceiling clearance when the level changes.
Specifications
Offer Sustainability
- Circularity Profile
- ENVEOLI111210EN
- Mercury Free
- Yes
- Sustainable Offer Status
- Green Premium product
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Rohs Exemption InformationYes
Environmental DisclosureENVPEP111211EN
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
California Proposition 65WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Specifications
- Range Of Product
- 9049
Product Or Component Typefloat kit
Complementary
- Type Of Float
- float tapped at top stainless steel 304
- Kit Composition
- 1 float || 2 stop || 2 rod
- Condition Of Use
- maximum recommended tubing length: 12.5 ft
- Rod Length
- 5 ft stainless steel 304
Net Buoyancy60 ozf in water
Product Weight3 oz total weight of stops || 16.9 oz weight of 5 ft rod || 3.4 oz weight of extra rod (per ft) || 5.6 lb(US) total weight
Product Compatibility9036G || 9038A || 9036D
Contractual warranty
- Warranty
- 18 months
