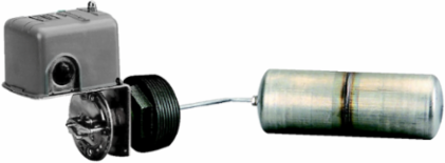

Telemecanique Sensors 9037HG31 Float switch, Square D Pumptrol, closed tank, NEMA 1, screw in bushing, 2 NC DPST DB contacts

This product is part of the Nema Pressure Switches range, an offer of float switches. This float switch has 2 NC, snap action, DPST-DB (double pole single throw, double break) form YY contacts. The closed tank float switch supports screw in bush mounting method and 90° (offset) float rod angle for operating in the right position. It is furnished with screw clamp terminals for electrical connection and 3 knockouts for 1/2inch conduit. It offers electrical durability of about 100 cycles and mechanical durability of about 300 cycles. It is a NEMA 1 rated product. The enclosure is made of polypropylene or equivalent material. It weighs 2.13kg. It is suitable for pressure controlling or monitoring of water pumps, compressors, agricultural/irrigation water systems, molding presses and injection molders. This product is certified by CE, CSA and UL. It meets CE and UL 508 standards. The kit includes float switch, float and rod. A complete line of switches designed for open or closed tank applications they detect rising or falling liquid levels in various types of containers. The Square D brand water pressure switch has expanded to industry leading Pressure Sensors and Switches.
