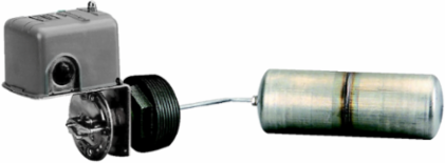

Telemecanique Sensors 9037HG31R Float switch, Square D Pumptrol, closed tank, NEMA 1, screw in bushing, 2 NO DPST DB contacts
- MPN: 9037HG31R
- UPC: 785901055082
- PPN: TES-9037HG31R
- UNSPSC: 39122219
CAD
$244.33
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Float switch, Square D Pumptrol, closed tank, NEMA 1, screw in bushing, 2 NO DPST DB contacts
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Square D Pumptrol
- Quantity Per Set
- set of 1
- Product Or Component Type
- float switch
- Device Application
- closed tank
Product Specific Applicationliquid level control
Electrical Circuit Typepower circuit
Type Of Packingindividual
Device Short Name9037H
Complementary
- Cable Entry Number
- 3 knock-outs for 1/2" conduit UL 508
- Contact Operation
- contacts open on liquid rise
- Terminal Block Type
- 4 terminals
- Short-Circuit Protection
- 20 A cartridge fuse gG
- Controlled Fluid
- fresh water specific gravity of 0.85 in or higher 0-220 °F || sea water specific gravity of 0.85 in or higher 0-220 °F || hydraulic oil specific gravity of 0.85 in or higher 0-220 °F || corrosive fluid specific gravity of 0.85 in or higher 0-220 °F
- Mechanical Durability
- 300 cycles
- Factory Modification
- without
- Operating Position
- vertical position only
- Enclosure Material
- polypropylene or equivalent
- Local Signalling
- with external pointer
- Materials In Contact With Fluid
- stainless steel 316 || nitrile (Buna-N) or equivalent rubber || cast iron || stainlesss steel 304 || yellow brass
- Net Weight
- 4.8 lb(US)
- Electrical Durability
- 100 cycles 60 cyc/mn
Electrical Connectionscrew-clamp terminals 10 AWG
Product Destinationfor closed tank
Terminals Description Iso N°1line-load-load-line
[Ui] Rated Insulation Voltage575 V UL 508
Device Mountingscrew-in bushing
Float Rod Angle90° (offset)
Float Movement6...11.5 in adjustable
Maximum Operating Rate60 cyc/mn
Contacts Type And Composition2 NO, snap action, DPST-DB, Form XX
Motor Power Kw1.5 kW 2 hp)115 V AC, 1 phase || 2.2 kW 3 hp)115 V AC, 3 phase || 2.2 kW 3 hp)230 V AC, 1 phase || 3.7 kW 5 hp)230 V AC, 3 phase || 0.75 kW 1 hp)460 V AC, 3 phase || 0.75 kW 1 hp)475 V AC, 3 phase || 0.18 kW 0.25 hp)32 V DC || 0.37 kW 0.5 hp)115 V DC || 0.37 kW 0.5 hp)230 V DC
Float Positionright
Kit Compositionfloat switch || rod || float
Environment
- Product Certifications
- CSA file LR25490 || UL listed file E12158
- Ambient Air Temperature For Storage
- -22-220 °F
- Nema Degree Of Protection
- NEMA 1 UL 50
Ambient Air Temperature For Operation-22-220 °F
StandardsUL 508 || CE
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Circularity Profile
- ENVEOLI111210EN
- Eu Rohs Directive
- Not applicable, out of EU RoHS legal scope
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Environmental DisclosureENVPEP111211EN
Reach RegulationReference contains Substances of Very High Concern above the threshold
